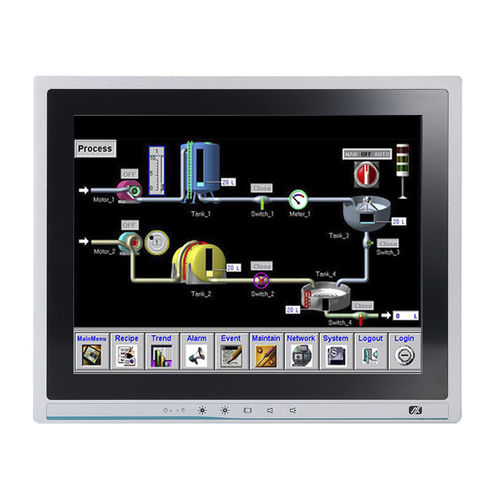

LCD panel PC P1127E-500
TFT LCD12"1024 x 768

LCD panel PC
LCD panel PC
LCD panel PC
LCD panel PC
LCD panel PC
LCD panel PC
Add to favorites
Compare this product


Characteristics

Screen type
LCD, TFT LCD
Display size
12"
Resolution
1024 x 768
Processor
Intel® Core™ i series
Applications
industrial
Other characteristics
HMI, high-performance, multimedia, IP65, robust

Description

Features 12.1" XGA TFT LCD display LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors Intel® H110 chipset Less screw design for easy installation 4 USB 3.0, 2 USB 2.0 and 4 COM One PCIe x4 or one PCIe slot Built-in speakers and optional Wi-Fi 802.11 b/g/n module Robust IP65 compliant aluminum front bezel 5 OSD keys in front panel Introduction The P1127E-500 features built-in speakers, an optional Wi-Fi 802.11 b/g/n module and WLAN antenna, making it perfectly suited for use in multimedia kiosks or as a human machine interface (HMI) in industrial automation applications. The P1127E-500 has a 12.1-inch XGA TFT LCD display with 5-wire resistive touchscreen and 500 nits of brightness. This high-performance touch panel PC supports the 7th/6th generation Intel® Core™, Celeron® and Pentium® processors (codename: Kaby Lake) in an LGA1151 socket with the Intel® H110 chipset. Coming with one PCIe x4 slot or PCI slot, the 12.1” industrial touch panel system offers flexible integration of a variety of add-on cards. The P1127E-500 is equipped with dual DDR4-2133 Long-DIMM sockets supporting up to 32GB system memory. The rich I/O options include three RS-232 ports, one RS-232/422/485 port, four USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one audio (Mic-in/Line-out), one VGA, one HDMI and one DisplayPort. This expandable touch panel computer also has one 2.5” SATA HDD for storage. It can be installed using a desktop stand, VESA arm, or wall mounting. It is compatible with the Windows® 10, Windows® 8.1, and Windows® 7 operating systems.
