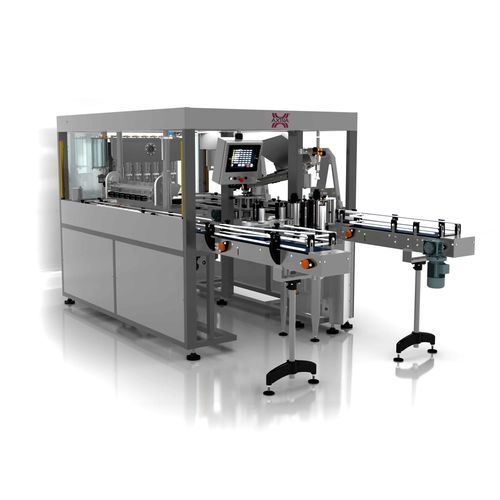

Linear filler-capper-labeler Miniline

modularcomputer-controlledfor bottles

Overview
AXTRA Miniline is a compact linear monoblock designed to perform complete bottling and packaging operations within a reduced footprint. The unit integrates cleaning, filling, capping, capsuling and self-adhesive labelling functions in a single modular structure, suitable for flexible production environments, small batches and pilot runs.

Functions

• Cleaning: infeed bottle handling with internal/external cleansing options (blow, rinse, sterilization depending on configuration)
• Filling: precise dosing for liquid, carbonated, viscous or sensitive formulations using internal filling heads
• Capping: support for various closure types (screw caps, push-fit, Stelvin, crown caps)
• Capsuling: capsule application options for short and long capsules
• Labelling: integrated self-adhesive labelling module positioned on the monoblock corner
• Conveying: guided infeed and output conveyors on mobile stands for flexible layout

Applications

• Food: oils, vinegars, sauces, preserves
• Beverage: still and sparkling water, soft drinks, beers, wines
• Cosmetic & personal care products
• Chemical: detergents, synthetic oils, paints and similar liquids

Configuration & integration
The Miniline can be configured according to product characteristics, container format and filling volume. Options include selection of filling technology adapted to liquid properties, closure solutions, labelling system and overall line layout. The monoblock is designed for integration with upstream and downstream equipment and to connect to existing lines where required.

Key components & user interface

• Enclosed process cabinet with modular internal filling heads
• Corner-mounted self-adhesive labelling module
• HMI touchscreen control panel for operator interaction and line control
• Guided output conveyor for finished containers
• Infeed and output conveyors on mobile stands for quick reconfiguration

Benefits

• Reduced footprint by combining multiple packaging steps into one monoblock
• Adapted to small batches, pilot production and specialised packaging needs
• Fast setup and flexible format changeover
• Clean product handling and precise dosing to protect product quality
• Designed for reliable operation across food, beverage, cosmetic and chemical sectors

Technical specifications

• Product type: compact linear monoblock integrating cleaning, filling, capping, capsuling and labelling
• Industries: food, beverage, cosmetics, chemicals
• Process cabinet: enclosed with internal filling heads (modular)
• Labelling: integrated self-adhesive module
• Operator interface: HMI touchscreen
• Conveyors: guided infeed/output conveyors on mobile stands
• Configuration: adaptable to container format, filling volume, closure type and line layout
• Typical use cases: small batches, pilot production, specialised packaging
