Aseptic filler-capper AM3

monoblocin-linemobile

Overview
AM3 is the mobile version of Miniline: a vehicle-mounted integrated monoblock machine designed for on-site cleaning, precise filling, capping, capsuling and secondary packaging operations. The unit groups multiple bottling functions in a compact, deployable system for itinerant or temporary production requirements.

Main functions

• Container cleaning and rinsing (configurable: blowing, washing, sterilization)
• Precise filling with dosing control for varied product viscosities and volumes
• Capping/closure application (multiple closure types)
• Capsuling (short/long capsules, PVC, polylaminate options)
• Packaging and pre-shipment preparation (integrable secondary operations)

Key features

• Vehicle-mounted, mobile monoblock with opening side panels for on-site deployment
• Configurable for container format, filling volume, closure type, line speed and layout
• Precise dosing and stable container handling for repeatable results
• Integrated capping and capsuling within the same monoblock
• Touchscreen HMI for operator control and recipe management
• Geared motor drive components visible in the working area
• Adaptable to liquids (still and carbonated), viscous/semi-viscous, dense or sensitive formulations
• Can be integrated with upstream and downstream equipment for line compatibility

Images & equipment details

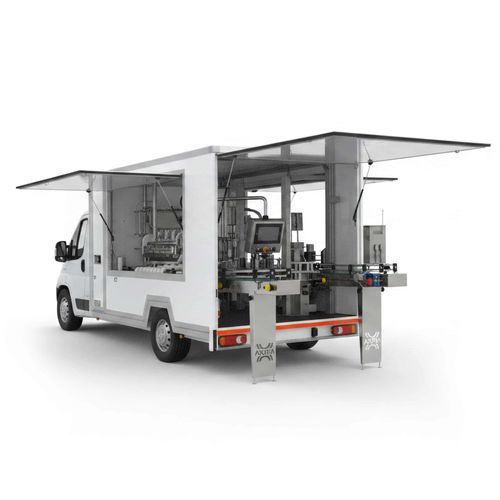

Photographs show the mobile monoblock installed in a vehicle with side panels raised, views of filling heads and the touchscreen HMI, and the compact working area inside the vehicle body. Visual evidence highlights access panels, filling station arrangement and drive components.

Technical specifications

• Model: AM3
• Brand: AXTRA
• Product type: Mobile integrated monoblock machine
• Main operations: cleaning, filling, capping, capsuling, secondary packaging
• Control interface: touchscreen HMI
• Drive: geared motor drive (visible)
• Configuration: customizable for product, container, filling volume, closure type, line speed and layout
• Mobility: vehicle-mounted solution with access via side panels
• Product compatibility: liquids (still and carbonated), viscous/semi-viscous, dense and sensitive formulations
• Intended use: flexible on-site production, itinerant bottling and packaging operations
