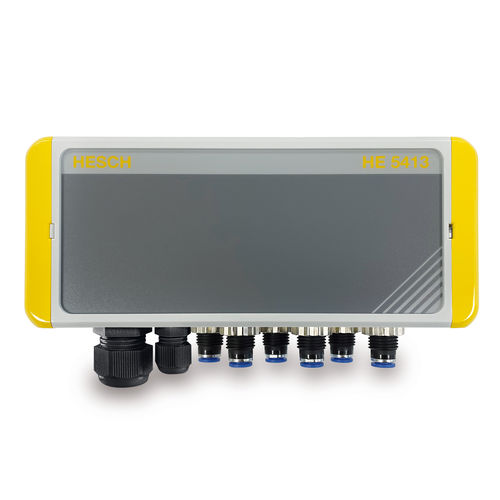

Multi-channel pressure transmitter HE 5413

differentialpiezoresistive4-20 mA

Differential pressure transmitter with up to 3 measuring channels in one housing – Ideal for multi-stage filter systems - Flexible application with up to 3 pressure measuring ranges in one device - Simple, space-saving installation - Tool-free connection without opening the housing - IP65 housing - also for outdoor operation - Individual setting of parameters via PC software The HE 5413 multiple measuring transmitter with up to three measuring channels in one device is used in filter and dedusting technology as well as ventilation and building services engineering. There it measures the pressure above filter elements or the extraction pressure compared to the environment in order to determine the degree of contamination of the filter or to control the performance of the extraction fan. The compact device means that users do not need to use several individual transmitters, which reduces both installation effort and costs. This results in a more efficient and cost-effective solution for the measurement requirements in various applications. The device is designed for wall mounting and can be operated with a power supply of 19-30 V DC or 100-240 V AC. Devices with 24 V DC can be commissioned quickly and completely without tools thanks to the M12 connector, as the device does not need to be opened. The measuring hoses are connected via a practical plug-in connection, which makes installation even easier. For use in harsh industrial environments, such as combustion technology, we also supply the HE 5413 multiple measuring transmitter in a robust die-cast aluminum housing. The HE 5413 can also be used safely in ATEX Zone 22 hazardous areas.
