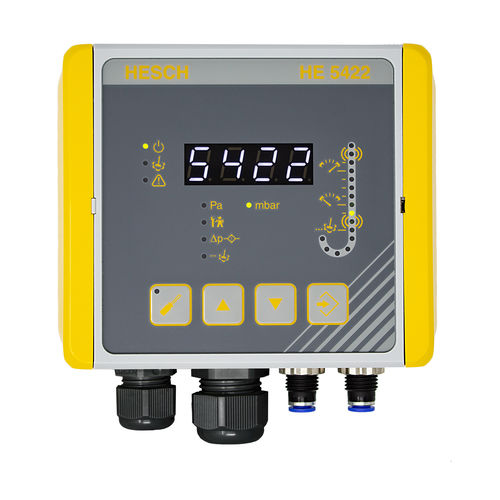

Differential pressure regulator HE 5422
for air4-20 mADC output

Differential pressure regulator - HE 5422 - AXXERON HESCH electronics GmbH - for air / 4-20 mA / DC output

Add to favorites

Compare this product

fo_shop_gate_exact_title

Characteristics

Product

for air

Technology

differential

Output signal

4-20 mA, DC output

Protection level

IP65

Applications

industrial, for filtration system

Other characteristics

compact

Pressure

Max.: 5,000 mbar
(72.52 psi)

Min.: 2.5 mbar
(0.04 psi)

Temperature

Max.: 55 °C
(131 °F)

Min.: -20 °C
(-4 °F)

Description

Differential pressure regulator – HE 5422 Monitors the control of the cleaning of industrial filter systems - Measuring ranges: ± 2.5, ± 5, ± 10, ± 25, ± 50, ± 100, ± 1000 - Parameterization either via the device keys or with PC software EasyTool Controls 4.0 - Can be used worldwide thanks to wide-range power supply 100 - 240 VAC and 24 V DC supply - Approval for ATEX zone 22 It can be used to cover differential pressure ranges from ± 2.5 to ± 1000 mbar, with a basic accuracy of ± 1% of the final value. The cleaning range of the compact controller is defined by a lower and an upper threshold. With the wide-range power supply unit for 100 – 240 V AC, as well as for 24 V DC, the HE 5422 differential pressure regulator can be used worldwide.
