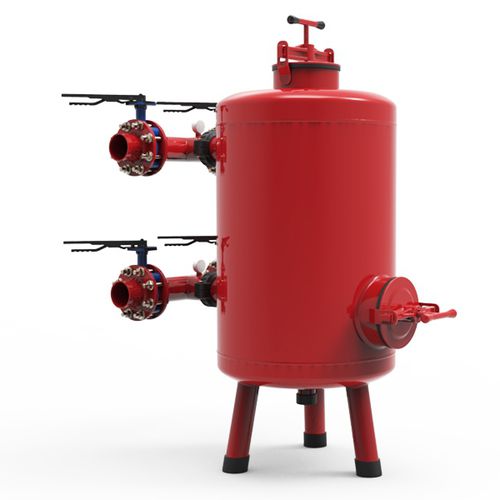

Liquid filter 30 seriescartridgesandgravel
Add to favorites
Compare this product
Characteristics
- Designed for
- liquid
- Filtration element
- cartridge
- Filtration method
- sand, gravel
- Operating pressure
Max.: 8 bar
(116.03 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 80 m³/h
(2,825.173 ft³/h)Min.: 15 m³/h
(529.72 ft³/h)
Description
CODEDD1TT1HH1H2H3FLOWMAX.PRESSURESAND
CAPACITY
inch mm m³/hbar kg
3020 218¾-1250 400900700 15 8 150
3025 2½242-1450 5601060750 20 8 300
3030 3242-1450 5601060750 24 8 300
3040 4242-1700 56012601000 28 8 350
3050 332211500 6101090700 45 8 450
3070 436211550 6501100700 55 8 450
3080 448211650 7201170700 80 8 700
