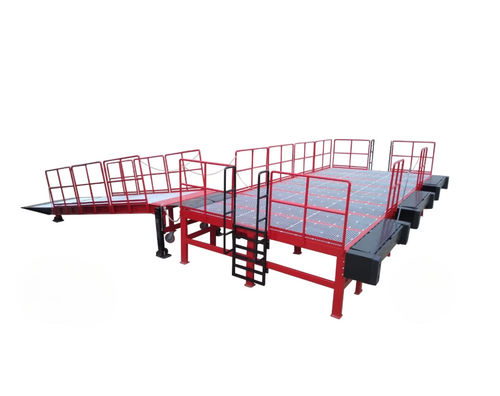

Gas loading ramp DISPATCH 3-11.9-9.1-8T

cylinderplatformfor logistics

Logistics station with mobile loading ramp and fixed quay table with 3 manual dock levelers compensated by gas cylinders. Brand: AZ RAMP- Type: DISPATCH 3-11.9-9.1-8T Load capacity: 8,000 Kg Dimensions: Total length: 11,900 mm Total width: 9,100 mm Length Inclined plane / Inclined part: 8000 mm Length of horizontal platform: 3,900 mm Height horizontal platform: 1,300 mm 3 manual dock levelers with gas cylinder compensation Pre-drilled support legs, integrated dock bumpers. Side safety rails, height: 1.20 m, removable Anti-slip running surface in hot-dip galvanized grating The + Products: Ideal ramp for logistics professionals and CACES certified Testers. Intended for use with 3 and 4 wheel forklift. Vertical platform of 35.49 m² to turn around with a 3-wheel electric trolley, but also to store 3 pallets on the platform to reduce the test time for each student. Slope: 16.25% on the inclined part. Complies with CACES-R489 standard
