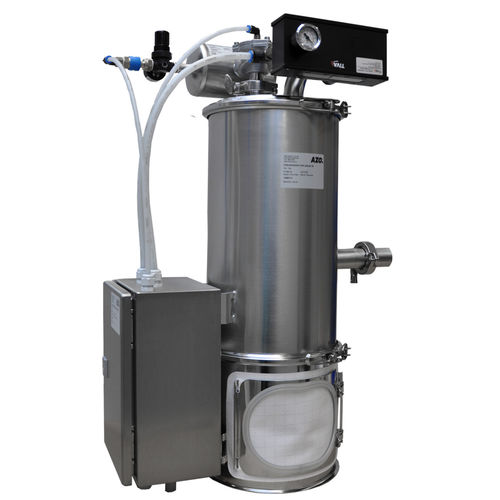

Pneumatic conveyor PPV series

verticaltransportfeeding

Conveying air generated by pneumatically actuated vacuum nozzle No electrical energy at controls or conveyor, can thus be used in areas protected from dust explosion Low overall height and weight, resulting in benefits for installation and cleaning Filter with air purge cleaning, filter media matched to product The type PPV conveyor is used to feed processing machines, mixers or reactors safely with free-flowing powders or granular bulk solids. Typical areas of application are in the food production sector, the plastics industry, chemicals and pharmaceuticals. It offers particular advantages when transferring small batches from a wide variety of receptacles. It allows products from sacks, barrels, bins or silos to be easily made ready for the next process. Design Mechanical system The conveyor is distinguished by the compact configuration of vacuum generator, receiver and control unit. Another key advantage is the energy supply: no other form of energy is needed apart from compressed air. The conveyor is designed so as to be quick to dismantle, making thorough cleaning possible. Furthermore, only high-grade stainless steel is used in its construction. Special versions for the food production or pharmaceuticals sector are also available. The filter elements can be chosen to exactly match the product that needs conveying in order to achieve maximum filtration of conveying air and separation of the product.
