Dosing vessel DOSITAINER®

for bulk materialsdustglass

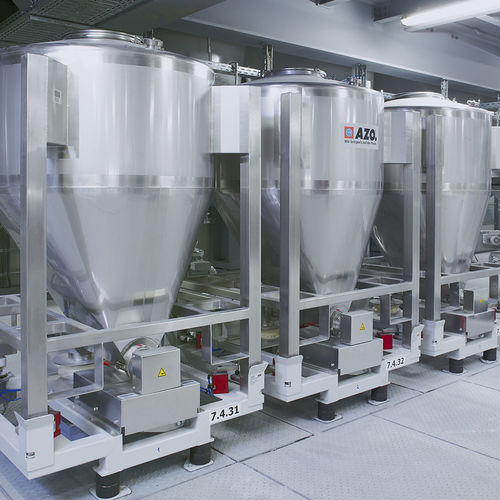

Ideal system for feeding automatic conveying and weighing processes The integral dosing screw allows DOSITAINERS® to be switched over without interim cleaning Extremely high weighing accuracy, even with larger throughputs, as a result of the frequency-controlled drive with coarse/fine metering and a pneumatically operated seal on the dosing screw outlet Reliable discharging thanks to optional vibrating discharge aids Secure discharging with minimum generation of dust from the AZO DOSITAINER® thanks to patented docking collar Optional identification systems prevent mix-ups and allow precise batch tracing and documentation Alternative model available for highly flammable dusts with minimum ignition energy of 1mJ ≤ MIE <3mJ The AZO DOSITAINER® is a container with integral dosing screw. It is suitable for use as a container for transporting bulk materials or as a storage bin with average throughput rates. In automatic processing plants, it is used as a portable storage bin suitable for automated handling. The integral dosing screw allows precise dosing into automatic weighing processes. Bulk materials are discharged from the AZO DOSITAINER® via a discharge base with a minimum of dust. The AZO DOSITAINER® is placed on the discharge base using an indus­trial truck. An optional, auto­matic identification system rules out mix-ups between containers. If there is a vibrating discharge aid, the container is also locked in position manually or pneumatically. The dosing screw is connected with little generation of dust using the patented docking collar.
