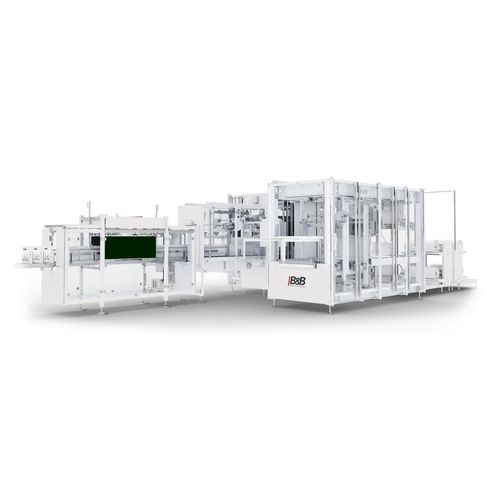

Fully-automatic stretch wrapper SBP 7

for food productsfor industrial applicationsstretch film

Overview
The B&B Stretchpacker offers an efficient and reliable solution for secondary packaging with stretch or shrink wrap. Thanks to state-of-the-art servo technology and intelligent control, the machine can often eliminate the need for a shrink tunnel and use thinner films, optimising packaging with maximum efficiency, flexibility and sustainability.

Key features

• Wide range of products: suitable for cans, pasta bags, diaper bags, windows, pouches, cartons, trays, cups, bottles and many other formats; ideal for individual or collective packaging.
• Flexible packaging options: film banderole, criss-cross banderole or full wrap.
• Customised sorting: stack and group products as required.
• Quick format change: tool-free format parts and intuitive recipe management reduce setup time and downtimes.

Highlights — Operation & Stretch technology

• HMI Operating Interface: intuitive operation with a modern HMI and recipe management.
• Stretch technology: individual stretching settings; adjustable depending on product requirements; material- and product-friendly stretching; highest process reliability.
• State-of-the-art controls and servo technology: replaces pneumatic components where possible and paves the way to Industry 4.0.

Performance & Benefits

• High throughput: up to 40 bundles per minute depending on format and configuration; up to 60 bundles per minute in two-lane operation.
• Film savings: compared with conventional shrink-wrap packaging, approx. 15% film savings; when using stretch film, film consumption can be reduced by up to 80%.
• Energy savings and product protection: eliminating the shrink tunnel reduces energy consumption and prevents temperature-related effects on primary packaging (no denting or fusing).
• Modular design: enables retrofitting and upgrades; machine integrates seamlessly into existing production lines.

Technical details (format range)
Format range*:
(B) Width: 80 mm - 1,250 mm
(L) Length: 40 mm - 520 mm
(H) Height: 30 mm - 400 mm
*Depending on the machine configuration; other dimensions available on request.

Sample configuration note
Sample configuration — dimensions may vary based on customer requirements and machine configuration.

Caractéristiques / spécifications techniques

• Model: Stretchpacker SBP 7
• Format range (B×L×H): Width 80–1,250 mm; Length 40–520 mm; Height 30–400 mm (dependent on configuration)
• Throughput: up to 40 bundles/min (single lane); up to 60 bundles/min (two-lane)
• Film technology: stretch or shrink film; enables elimination of shrink tunnel in many cases
• Film savings: ~15% vs. conventional shrink-wrap; up to 80% when using stretch film
• Drive & control: servo technology, modern controls suitable for Industry 4.0
• Operator interface: modern HMI with recipe management
• Format change: tool-free format parts, motorized/recipe-driven format changeover
• Design: modular, service-friendly with large access doors for reduced maintenance time
• Applications: food, pet food, tissue, non-food and many special formats (pouches, cartons, cans, bottles, trays, cups, rolls, etc.)
