Plastic bag making machine STBB

automatichigh-speed

Overview
B&B stand-up pouch machines form flexible stand-up pouches and spout pouches for food and liquid packaging applications. Their low empty weight and compact footprint provide logistical and material-efficiency benefits. Machines are designed for inline spout insertion to produce spout pouches in a single manufacturing step. Options for contour or individual sealing, tear notches, resealable closures and handle holes are available.

Key benefits and process highlights

• Inline manufacturing: spout pouches produced in one step for reduced handling and scrap.
• Higher throughput: inline process reduces personnel and increases machine productivity.
• Leak detection: optional automatic leakage test detects smallest leaks and ejects defective pouches before filling.
• Cleanroom capability: available machine version suitable for controlled/hygienic environments.

Features

• Flexible spout compatibility: supports KGA spout tubes and a wide range of spout formats.
• Integrated inline spout inserter: synchronized insertion and sealing within the forming process.
• HMI with recipe management: modern interface for quick format changes and intuitive operation.
• Production lanes: configurable single, dual or quadruple lane layouts to match output requirements.

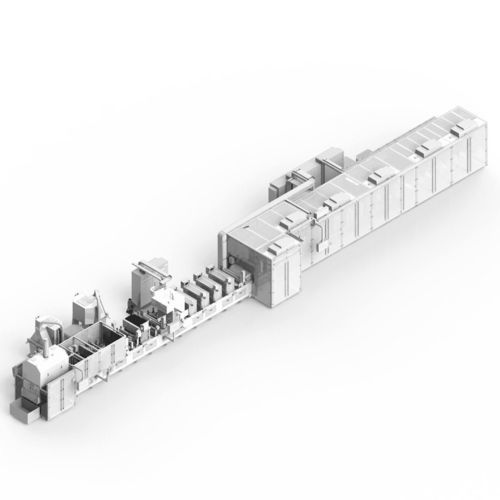

The STBB machine — at a glance
Production-oriented solution for manufacturing stand-up and spout pouches with inline spout insertion, configurable lane layouts and optional leak detection to ensure sealed pouches proceed to filling.

Technical specifications

• Model / Series: STBB
• Max production speed (general): up to 520 bags/min.
• Inline spout pouch production: up to approx. 400 spout pouches/min (product-dependent).
• Compatible materials: PET/Alu/PE; PET/PE; PP and other composite films; sustainable mono-films.
• Lane configuration: single, dual or quadruple lane options.
• Quality control: optional automated leakage test with rejection of defective pouches.
• Operation: modern HMI with recipe management for fast changeovers.
• Special versions: available in cleanroom/hygiene-sensitive design.
