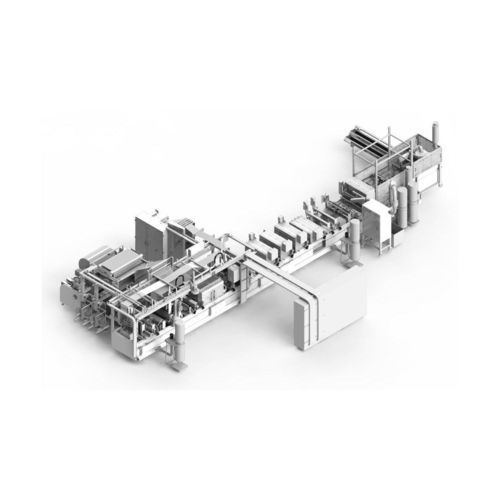

Plastic bag making machine

nonwoven fabricautomatichigh-speed

Overview
Machine for the production of sterilizable bags using Tyvek® designed for medical and pharmaceutical packaging. Combines a breathable Tyvek® microbial barrier with tear-resistant film construction to enable gas sterilization processes such as ethylene oxide (EO).

Application
Sterilizable Tyvek® bags are intended for sterilization packaging of instruments, instrument sets and medical devices. The combination of gas-permeable Tyvek® with otherwise gas-tight film layers permits effective sterilization while maintaining barrier performance during storage and transport.

Design & Cleanroom
Machine engineered for cleanroom use and pharmaceutical environments. Cleanroom-compatible construction with the possibility to meet ISO cleanroom class 5 requirements. Layout and materials can be adapted to customer specifications for aseptic production.

Materials & Construction
Combined processing of film and Tyvek® to produce Tyvek® header bags and Tyvek® laminated constructions. Compatible combinations include Tyvek® + LDPE and Tyvek® with laminated films. Tyvek® (DuPont™) is a fibrous, breathable nonwoven providing the required microbial barrier and tear resistance for sterilizable packaging.

Production Configuration & Operation

• Two-up (dual-lane) configuration available for increased throughput
• Modern HMI with recipe management for intuitive operation
• High material and format flexibility for different bag types

Highlights

• High microbial barrier and excellent tear resistance (Tyvek®)
• Configurable machine design to customer requirements
• Cleanroom-capable construction (up to ISO class 5 possible)

Technical details
Format range (sterilizable bags)
Width: 200 - 500 mm
Length: 250 - 1200 mm
Floor/bottom gusset: 10 - 60 mm

Format range (header bags)
Width: 200 - 550 mm
Length: 250 - 495 mm

Specifications

• Intended use: Sterilizable medical and pharmaceutical bags
• Material compatibility: Tyvek®, LDPE, laminated films (combined processing of film and Tyvek®)
• Barrier properties: High microbial barrier and excellent tear resistance (Tyvek®)
• Configuration: Two-up / dual-lane possible for increased throughput
• Operator interface: Modern HMI with recipe management
• Cleanroom capability: Machine design suitable for pharmaceutical cleanrooms (up to ISO class 5 possible)
• Customization: Machine configurable to customer specifications
• Performance: up to 30 cycles/min (depending on configuration)
• Format ranges: see format sections above
