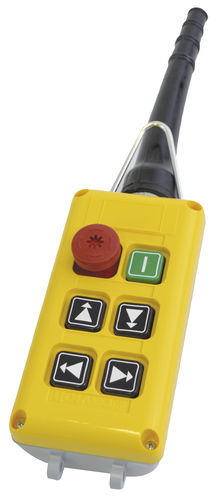

The pendant station series Stilo is a single or double-row push-button station for auxiliary circuits. Classical design and materials in compliance with the best technology available are the basis for this device.
In designing the product particular attention was paid both to easy handling features and to the technical aspects, in order to ensure usage also in heavy-duty circumstances. All materials in direct contact with the environment are resistant to atmospheric agents, oils and extreme temperature changes. The rubber gaskets ensure optimal protection against dust and liquids, thus the protection degree of IP 65 is easily reached.
The optimized internal space allows the make of all connections easily and quickly. Bridge connections have been projected in order to reduce cabling time and are available upon request.
Stilo push-button station as single-row B-execution is offered in 8 different sizes, ranging from 5 to max 12 buttons. The double-row PK-execution is available in 6 different sizes with 4 to max 14 buttons. All buttons can be freely configured.
The cable entry point is either available from top or from below. The emergency stop push-button has been designed according to EN 418 regulations. The NC contacts feature guaranteed opening (EN 60947-5-1) and can be supplied optional in the 2 NC increased safety version. The switches have self-cleaning sliding contacts in silver alloy.
