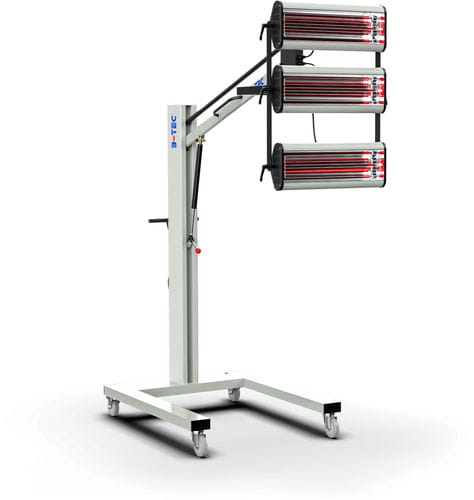

Infrared dryer IR-X3

continuousfor paintfor auto body

The short-wave infrared dryer IR-X3 offers the shortest drying times and high flexibility even for roof and bonnet drying – and that at an unbeatable price-performance ratio. Equipped with a timer and adjustable drying intensity, the dryer offers the highest quality in its price segment. Thanks to three individually switchable cassettes, the IR-dryer offers a drying area of up to 1000×800 mm. For the best possible energy and thus cost savings, only individual cassettes can be activated for smaller drying areas. Unlike medium- or long-wave infrared radiation, short-wave infrared radiation penetrates the coating and heats it from the inside out. Complete sealing of the paint surface with wet paint layers still underneath is effectively prevented. This leads to a perfect drying result and prevents painting problems such as “boiling” and “biting”. Highlights Shortest drying times energy saving 230 V, 3.060 Watt vertical height adjustable from 100 mm to 2400 m 10 m power cable – high flexibility each emitter individually activatable timer adjustable drying intensity drying area: approx. 1000 x 800 mm Options: Protection cover
