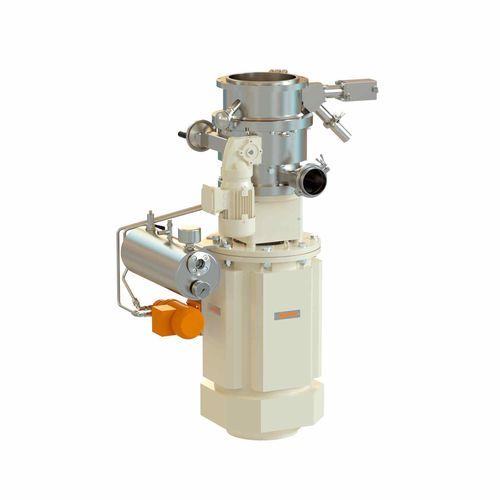

Rotor-stator homogenizer HRB

batchsolid/liquidfor liquids

The HRB internal/external circulation homogenizer with adjustable GAP ensures optimal dispersion quality over a wide viscosity range. The HRB is designed for batch operation with external or internal recirculation homogenization, allowing continuous raw material introduction, high-flow pumping, dispersion/emulsion, and self-cleaning under CIP conditions. The first chamber of the homogenizer is equipped with a combination of liquid and powder inlet valves, with continuous suction thanks to the associated Venturi and vacuum effects. Liquid and powder additives are introduced directly into the high turbulence area, eliminating the disadvantages of conventional inlets in industrial processes. The second chamber integrates the rotor-stator, ensuring homogeneous dispersion and narrow particle size distribution. An automatic GAP adjustment system, from 10% to 100%, allows shear rates up to 250,000 s-1 to achieve fine emulsions and dispersions from 10 µ to 1 µ. The third chamber includes a specially designed pumping turbine for high circulation capacities, even for viscous products and CIP operations. - Advantages: - Internal and external recirculation with high flow rate. - Automatic GAP adjustment from 0.1 mm to 1.5 mm. - Continuous and controlled raw material introduction. - Capable of handling high-viscosity products. - Allows raw material introduction into the HRB turbulence zone. - Supports CIP operations. - Features: - Designed for external/internal recirculation homogenization. - Continuous and controlled introduction of liquid and powder additives near the emulsifier for rapid dispersion. - Direct introduction into the turbulence zone via Venturi and vacuum effects. - Low vacuum levels for continuous suction without product loss. - Double pressurized mechanical seal with external lubrication. - Various emulsion head types depending on desired fineness. - Emulsifier position in emulsion/CIP mode via servo motor with electronic positioner. - Automatic GAP change between rotor and stator, from 10% to 100%. - Electronic GAP positioning indication from HMI. - Shear rate up to 250,000 s-1. - Emulsions from 10 µ to 1 µ. - Integrated pumping turbine for high circulation levels with high-viscosity products. - Circulation flow up to 50 m³/h. - Integrated CIP washing system. - Options: - Various dispersion heads. - ATEX certificate. - Other construction materials. - Polishing below Ra 0.4. - Double jacket for heating or cooling the homogenizer body. - Typical Applications: - Cosmetics and Pharmaceuticals: Food additives, After Sun, Antibiotics, Biocosmetics, Dyes, Creams, Toothpastes, Dietetics, Sweeteners, Emulsions, Essences and flavors, Shaving foams, Dispersions, Gels, Gums, Syrups, Lipsticks, Body milks, Masks, Ointments, Sunscreens, Coatings, Silicones, Suppositories, Ointments. - Chemicals: Adhesives, Dyes, Pigments, Polymers, Premixes, Resins, Silicones. - Food: Creams, Concentrates, Vitamin supplements, Dietetics, Gelatins, Ketchup, Mayonnaise, Sauces. - Technical Specifications: - Available power: 3 kW to 90 kW. - Internal/external recirculation. - Adjustable GAP from 0.1 mm to 1.5 mm. - Shear rate up to 250,000 s-1. - Emulsions from 10 µ to 1 µ. - Circulation flow up to 50 m³/h. - Integrated CIP system.
