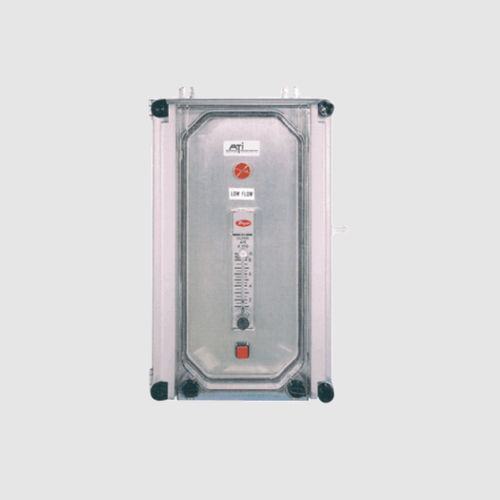

Gas sampler A21

vacuum

The A21 Gas Sampler system utilizes a high-quality diaphragm pump, powered by a brushless DC motor, for seamless and continuous sampling operations. The advanced pump design ensures reliable performance, withstanding rigorous usage for prolonged periods without compromising on sampling accuracy. Gas Sample Pumping System The A21 Gas Sampler is a pumping system designed to draw gas samples from ducts or hard-to-access locations and deliver them to gas sensors, such as the D12 Toxic and Combustible Gas Detector, located in a more convenient area. The A21 Gas Sampling systems use a high-quality diaphragm pump that is operated by a brushless DC motor to provide continuous sampling over long periods of time. Gas sampling pumps are rated for over 10,000 hours of continuous operation, and diaphragms in the pump may be changed easily if necessary. The pump will draw gas samples against a vacuum of up to 10” Hg. For sampling negative pressure duct systems when necessary. In addition to the sampling pump, the A21 systems contain various components needed to ensure reliable gas sample measurement. A flowmeter mounted on the front panel allows the user to adjust the gas sample flow rate to the desired value, normally around 500 cc./min. Internal to the system is a “loss of flow” detector that will warn of sampling system problems that could compromise the gas measurement system. A “loss of flow” alarm light on the front panel provides local flow loss indication while an internal relay can be used to indicate this alarm remotely. Features Integrated Sampling System Standard Loss of Flow Alarm Variable Flowrate Adjustment AC or 12 VDC Systems Available NEMA 4X Enclosure
