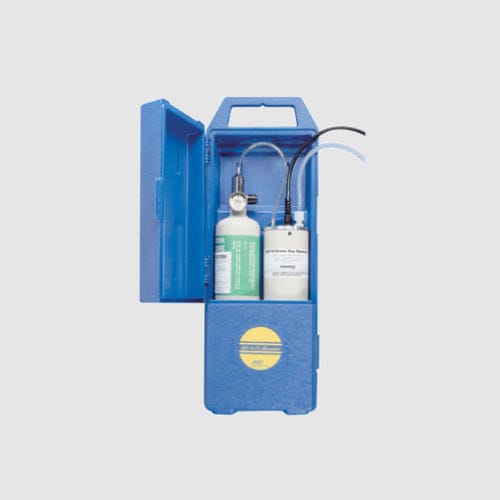

Dry ozone generator A23-14

for water treatmentfor the food industryfor calibration

The A23-14 Ozone Generator is an easy-to-use, line-powered, ozone calibration source. The generator produces ozone concentrations below 1 PPM, which can be used for detector calibration at almost any location. Ozone Gas Generator and Calibration Wherever You Need It The use of ozone gas is increasing rapidly in a wide variety of applications, such as water treatment, odor control, and food processing. As the number of ozone generators in use has expanded, the need for gas leak detection near the generators or at ozone application points has expanded. With the expanded use of ozone leak detectors has come the need for a tool to generate the low-level ozone gas needed to calibrate ozone sensors. The A23-14 Ozone Generator is a portable generator designed to produce an ozone gas concentration below 1 PPM, which can be used for detector calibration at almost any location. The generator uses a compressed air cylinder to supply dry air to an ultraviolet cell where ozone gas is formed. The resulting flow of air with a small amount of ozone exits the generator cell through fluorocarbon outlet tubing that is used to deliver the ozone standard to a gas sensor used in the A14/A11, B12, C16, D12 and F12 gas monitoring systems. Operating the ozone gas generator is simple. The UV generator cell is plugged into any convenient power outlet and the valve on the air cylinder is opened. The cylinder valve is a fixed flow regulator so no flow control is required. The outlet tubing from the generator is connected to your ozone gas sensor for whatever period is needed for calibration and then the system is shut off.
