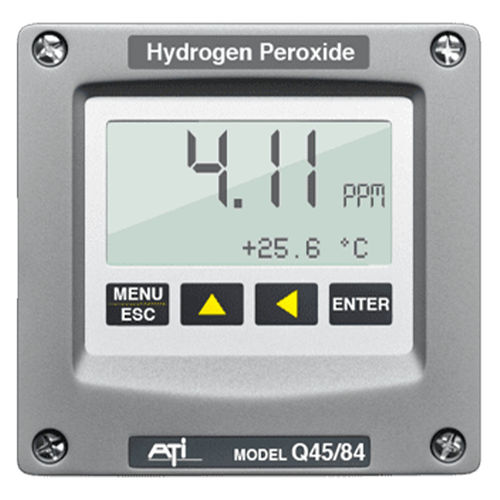

Industrial water quality monitor Q45

The Q45/84 Hydrogen Peroxide Transmitter is an on-line monitoring system designed for the continuous measurement of hydrogen peroxide (H2O2) concentration in water. The Q45H/84 is ideally suited for applications in which H2O2 is applied to water for sterilization purposes. Continuous Water Quality Monitoring of H2O2 The Q45/84 Hydrogen Peroxide Water Quality Transmitter is designed to continuously measure the concentration of H2O2 in aqueous systems. Using a direct sensing polarographic probe, this monitor is mounted in a flow cell to measure H2O2 in a flowing water stream. A Peroxide permeable diffusion membrane isolates the sensing electrodes from the measured sample, providing long-term stability without electrode fouling problems. The measurement is selective for Peroxide and does not respond to most other chemicals in solution. Features Multiple flow cell options Measurement from 0-2 ppm to 0-200 ppm or mg/L For simple installation, complete flow control assemblies are available
