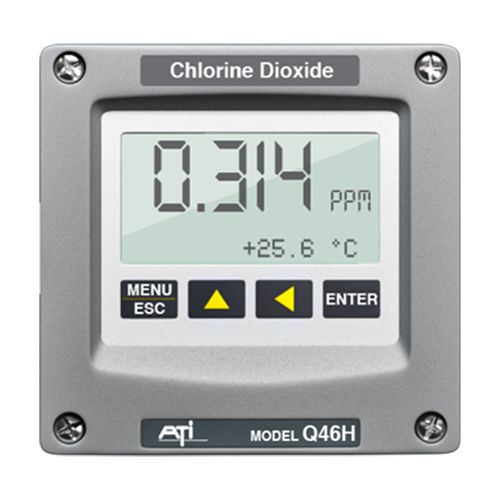

Temperature water quality monitor Q46H/65

chlorineindustrial

The Q46H/65 Chlorine Dioxide Monitor is a versatile on-line monitoring system designed for the continuous measurement of chlorine dioxide in solution. With a variety of outputs including 4-20 mA analog, PID control and digital communications, the Q46H/65 is adaptable to any ClO2 application. Continuous Water Quality Monitoring of Chlorine Dioxide Q46H/65 monitors use a polarographic membraned sensor to accurately measure ClO2 in water. The sensor operates much like a battery, generating current that is linearly proportional to the concentration of chlorine dioxide in solution. A ClO2 permeable membrane isolates the sensor from the measured sample and insures that the measurement is interference-free. Two versions of the sensor are available, a sensor intended for installation in a flow cell and a sensor intended for submersion applications. Requiring minimal maintenance, sensors are easy to use and easy to maintain. An integral RTD provides temperature compensation and allows temperature to be displayed and transmitted from the monitor. Features Online monitoring and control for Chlorine Dioxide disinfection systems Adaptable to any Chlorine Dioxide application Interference-free Chlorine Dioxide measurement
