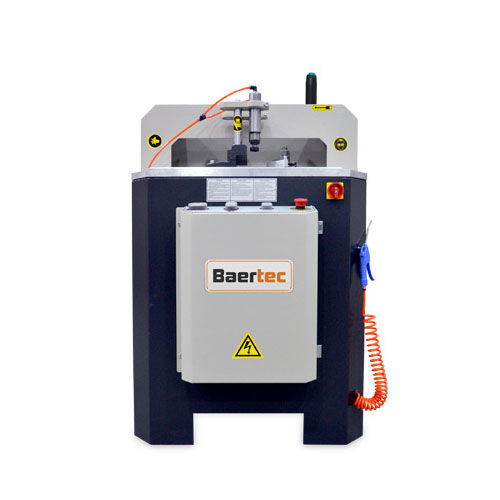

Description
- For end milling of transom in PVC and Aluminum profiles.
- Automatic feed of the milling unit.
- Ability to route at varying angles up to 45° left and 30° right.
- Vertical pneumatic profile clamping system enables optimum work piece fixing.
- Positioning of the tools with pneumatic feed cylinder.
- Without changing the cutter set, two different series of transom profiles can be processed.
OPTIONAL
- Cooling system for aluminum profiles.
- Hydro-pneumatic feed system to route aluminum profiles.
Technical Features
• Power supply: 400 V, 3ph, 50-60 Hz
• Power output: 1,1 kW
• Max. cutter diameter: 160 mm.
• Spindle speed: 3,000 r.p.m.
• Max. routing height: 90 mm.
• Max. routing depth: 30 mm.
• Max. profile width: 120 mm.
• Max. profile height: 90 mm.
• Air pressure: 6-8 bar
