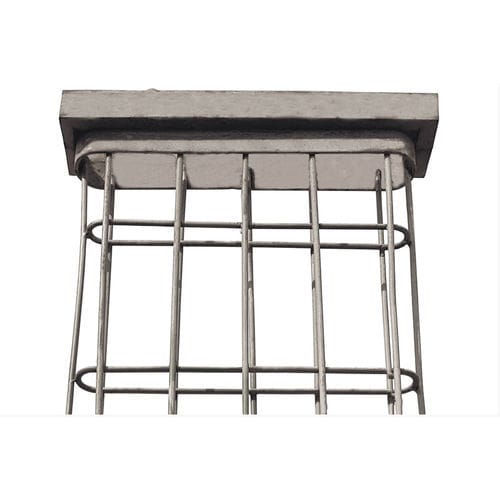

Gas filter frame

Product overview
Filter cages (supporting elements for filter bags) are replaceable elements of the BFF bag filter gas cleaning equipment. They are produced on modern equipment that provides high quality products, wide range and large volumes in a short time. We can produce new – non-standard types of filter cages upon the request of customer.

Design and components
Filter cage is a welded structure made of metal wire with additional elements: top ring (flange), bottom, joint (for split cages).

Function
These elements are designed to shape the filter bags and prevent bag deformation during filtration and regeneration, which in turn contributes to the stability of the working process.

Customizable parameters

• Number of longitudinal wires
• Diameter of longitudinal wires

Additional information (table)
material: St3, AISI
treatment: Zinc galvanizing, Painting
type: One-piece, multi-sectional

Features / technical specifications

• Welded metal-wire structure with additional elements: top ring (flange), bottom, joint for split cages
• Designed to support and shape filter bags, preventing deformation during filtration and regeneration
• Produced on modern equipment ensuring high quality and ability to produce large volumes
• Possibility to manufacture non-standard (custom) types upon customer request
• Customizable parameters: number of longitudinal wires; diameter of longitudinal wires
• Material options: St3, AISI
• Surface treatment options: Zinc galvanizing, Painting
• Available types: One-piece, multi-sectional
