Rail
Add to favorites
Compare this product
Description

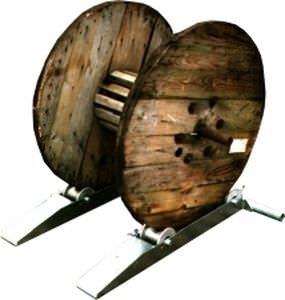

Reeling rails with fixing bar
Distance between rails is adjustable to different cable drum widths
Securing of the drum by locking of rollers
Order No. Max. dia. drum Load Max. Width Drum Weight / Pair
009.676.00 1000 1000 800 31
009.676.10 1400 1500 900 33
009.676.20 1800 2000 1100 53
009.676.40 2800 2000 1650 86
Cable drum transport devices
Load Max. Dia. Drum Max Width Drum Weight Order No.
800 kg 1250 mm 930 mm 70kg 009.660.00
