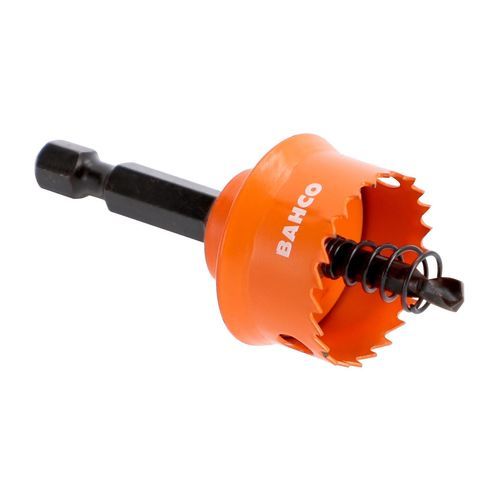

Metal hole saw 38IM series

for plasticsbimetal

Short description

• Bi-metal holesaws designed for cutting sheet metal and various plastics
• Impact-resistant geometry, suitable for use with impact drivers
• Shallow cutting depth optimized for sheet metal
• Built-in depth stopper prevents the holesaw from cutting through the material
• Bi-metal construction for increased wear resistance
• Fits power drills and drivers with 1/4" hex shank; HSS pilot drill included
• Ejector spring for rapid core removal
• 7/9 teeth per inch

Variants (table)
SKU | Diameter | Weight (g) | EAN
38IM-16 | 16 mm | 46 g | 7314150585144
38IM-19 | 19 mm | 48 g | 7314150585168
38IM-20 | 20 mm | 52 g | 7314150585182
38IM-22 | 22 mm | 56 g | 7314150585205
38IM-25 | 25 mm | 58 g | 7314150585229
38IM-29 | 29 mm | 66 g | 7314150585243
38IM-32 | 32 mm | 74 g | 7314150585267
38IM-35 | 35 mm | 76 g | 7314150585281
38IM-38 | 38 mm | 86 g | 7314150585304

Technical specifications

• Brand: Bahco
• Model / Reference: 38IM
• Construction: Bi-metal for improved wear resistance
• Applications: Sheet metal and various plastics
• Impact resistance: Designed for use with impact drivers
• Cutting depth: Shallow cut depth suitable for sheet metal
• Depth stopper: Prevents the holesaw from cutting through the material
• Mounting: Fits all power drills and drivers with 1/4" hex shank
• Pilot drill: HSS pilot drill supplied
• Core removal: Ejector spring for instant core extraction
• Teeth: 7/9 teeth per inch
• Weight per diameter: See variants table (e.g. 16 mm = 46 g, 38 mm = 86 g)
• Recommended use: Making controlled holes in sheet metal where depth control is required
