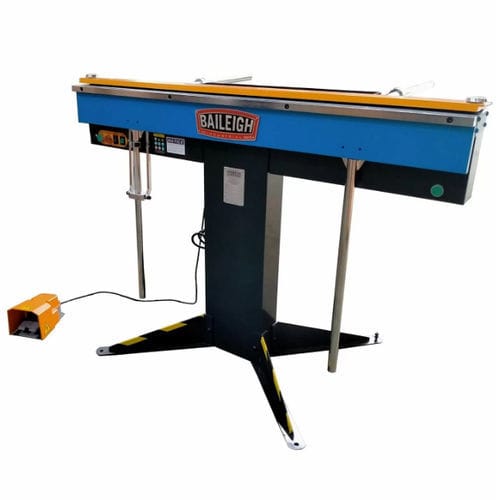

This sheet metal brake can bend boxes or pans to almost any depth since it doesn’t rely on conventional finger depths.
Runs on 220-volt single-phase power and will work at virtually any site.
48” (4-foot) length with a maximum capacity of 16 gauge mild steel.
The breakthrough open-ended design allows you to create enclosed ducts and shapes impossible to make with a traditional box and pan brake.
6-ton magnetic power is consistent across the entire beam, allowing for crisp bends even in the middle of the brake.
Scaled stroke angle control lets you deliver repeatable bends time after time.
You can set up the mild steel clamping bar with straight bars (of various widths if you had very tight boxes to make) for straight bends or segmented clamping bars for box and pan applications.
Blade gap adjustment on the clamping bars lets you work with sheet metal of different thicknesses.
You can remove the bottom leaf's bending extension for the tightest bend dimension between bends of .625”.
Comes with product supports and adjustable back gauges for production runs.
Baileigh covers this box brake with a 1-year parts warranty as well as lifetime technical support by phone.
Typically kept in stock for quick shipments.
