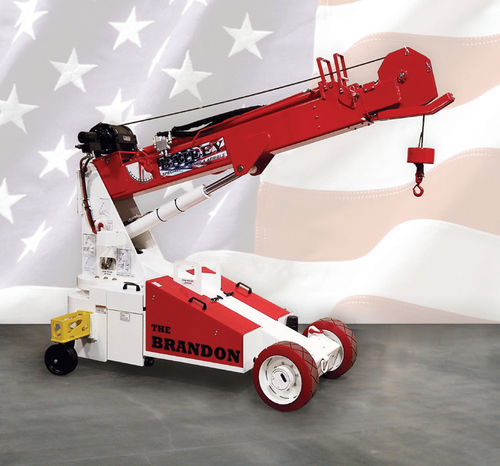

Electric telehandler Brandon 6

for glass handling

The Brandon 6 Telehandler provides extensive glass lifting capability. Other materials can be lifted including metals, granite, quartz, building panels and even concrete. This has significantly more reach than the competition. 24 Feet (7.33M) of Vertical Reach 5,500 Lbs + Attachment 2 Wheel Drive, 2 Wheel Brakes 16 Feet (4.88M) of Horizontal Reach Woods Power Grip system 24 Volt Battery Powered Specifications Model: Brandon 6 Hook Capacity: 6,000 lbs Fork Capacity: 2,500 lbs Winch Capacity: 3,000 lbs Glazier Capacity: 1,100 lbs Robot or Jib Capacity: 1,000 lbs Reach: Industry leading reach with below grade capability. Battery Power: 24V 400AMP-Hour AGM maintenance free Electric Motor: 6HP Fan Cooled DC Weight: 5,480 Lbs + Attachment Steering: Rear Wheel Charger: On-board 110 Volts AC Proportional Controls: Electric Joystick for Proportional Lift and Extend. Includes 2-Speed HI/LOW switch for precise slow speed control. Boom: Base unit, 2 telescoping booms and one manual pull-out boom. Attachments replace pull-out boom. Hydraulics: Gear Pump with Load Sense Dump. Drive: 2 Wheel Drive and Braking with Joystick and Speed Dial to best provide inching control. Rated Load Limiter: Displays rated load and actual load. Stops when rated load is reached. Detects which attachment is installed and automatically adjusts load parameters. Progressive Function Control:Adjusts the maximum drive and lift speeds to limit unsafe operation based on the following: Steering Angle (Drive slow with tight radius) Boom Height and Reach Lifted Load (Slow when closer to limit)
