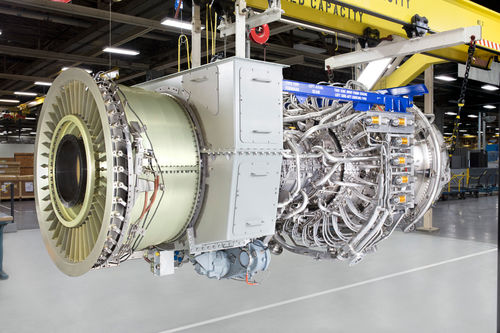

Gas turbine LM6000PF+

mechanical drivefor power generationaeroderivative

Providing high performance, flexibility, and best cost per kW in its power class Benefits Over 41% efficiency in simple cycle, or 56% in combined cycle High power output with the possibility for an additional 4 MW when configured with SPRINT option Flexibility to burn both gas and liquid fuels, and able to quickly ramp up and down to match demanding operating requirements Features Combustion system with well-proven DLE 1.5 technology and dual-fuel capability High-pressure turbine rotor from CF6-80E aircraft engine for high operating temperatures Low-pressure compression at 3,930 rpm for high airflow; airfoils optimized for high efficiency Applications Onshore and offshore LNG, pipeline and gas storage Industrial, and combined heat and power Overview The LM6000PF+ aeroderivative gas turbine combines our latest innovations with the best proven technologies and operating experience from more than 5,000 aircraft engines with over 450 million flight hours, and 1,300 LM6000 units with over 40 million operating hours in the last 30 years. Data for GT inlet conditions: 15ºC (59ºF) ambient temperature, 60% relative humidity, 101.3 kPa ambient pressure, considering no inlet or exhaust losses, and Standard Natural Gas. Extended maintenance plan is available to get higher availability from your plant; Contact Baker Hughes to define your customized service contract as per your needs. Package dimensions exclude driven equipment. Data for GT inlet conditions: 15°C (59°F) ambient temperature, 60% relative humidity, 101.3 kPa ambient pressure,
