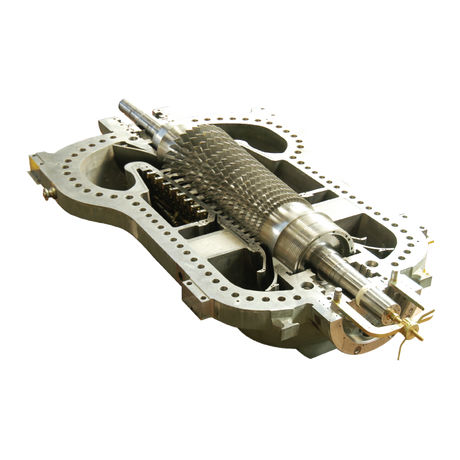

Centrifugal compressor A series

airpneumaticstationary

To manage the highest flow rates and improve plant flexibility Benefits Suited to the highest flow rates, providing polytropic efficiency exceeding 90% Variable stator vane can move from to +10° to -35°, enabling wide operating flow range even with a fixed-speed motor driver Standard airfoil configuration for all frames and sizes optimizes aerodynamic and mechanical behaviour up to 7:1 pressure ratio Features AN series for LNG applications can operate with flow up to 250,000 m³/h with up to 15 stages AX series for flows over 450,000 m³/h; scalable to any driver size for air compression, CO₂ separation, nitric acid processes Applications Refinery catalytic cracking Air compression Sweet/sour gas to liquid application Overview Baker Hughes AN and AX axial compressors are based on decades of experience with over a million running hours. All AN and AX units can manage the highest flow rates and provide high polytropic efficiency to guarantee plant flexibility with a fixed-speed driver. Complete standard configurations ensure optimum blade-row behavior even with high pressure ratios.
