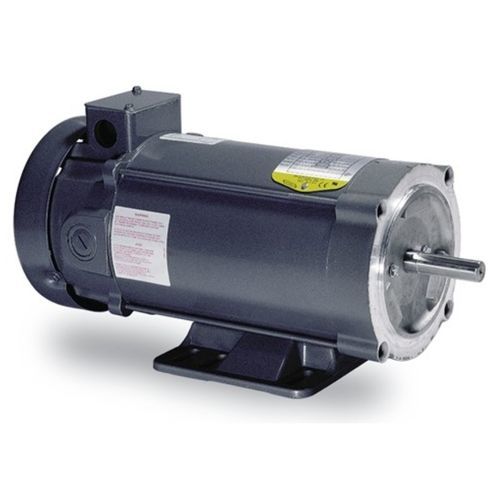

DC motor AP232001synchronous180 V90 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Voltage
- 180 V, 90 V
- Configuration
- permanent magnet
- Applications
- for conveyors, packaging machine, for winding operations
- Other characteristics
- NEMA
- Power
Max.: 5 ch
(5 hp)Min.: 0.25 ch
(0.25 hp)- Rotational speed
Max.: 3,450 rpm
(21,676.99 rad.min-1)Min.: 1,725 rpm
(10,838.49 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
These NEMA frame permanent magnet DC motors include permanent magnet designs through 5 HP designed for adjustable speed operation from SCR controls. Most designs are constructed so a tachometer may be added for closed loop applications. Permanent magnet designs for 90 or 180 VDC have a 20:1 constant torque speed range.
Features
• NEMA C-Face with removable base
• Class F insulation system
• 20:1 constant torque speed range
Common industries
• Plastics
• Parinting
• Packaging
Common applications
• General purpose including conveyors
• Material handling equipment
• Packaging machinery
• Extruders
• Winders
• Printing Presses
• Metering Pumps
