- Baldor Electric Company
DC motor PM seriespermanent magnetIP55washdown
Add to favorites
Compare this product
Characteristics
- Type
- DC
- Configuration
- permanent magnet
- Protection class
- IP55, washdown, sealed
- Applications
- for conveyors, agricultural, for the pharmaceutical industry, for the food industry
- Other characteristics
- NEMA
- Power
Min.: 0.25 ch
(0.25 hp)Max.: 5 ch
(5 hp)
Description

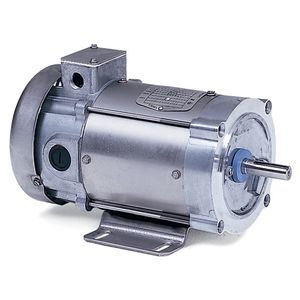

This NEMA framed permanent magnet DC motor comes with an epoxy coated white washdown coating suitable for high pressure washdown. It is rated IP55 with a totally enclosed C-face footed design for general washdown applications such as food processing conveyors, feeders, and other wet applications requiring adjustable speed operation from SCR controls.
Features
1/4 - 5 hp
Moisture sealant on bolt heads between frame and endplates
Neoprene gasketed conduit box
Double sealed bearing
Forsheda® running contact V-Ring slinger
Stainless steel shaft
Class F Insulation
Tachometer adaptable
Suitable for high pressure washdown
