Vertical sliding door ROTEO GOLD

galvanised steelindustrialinsulated

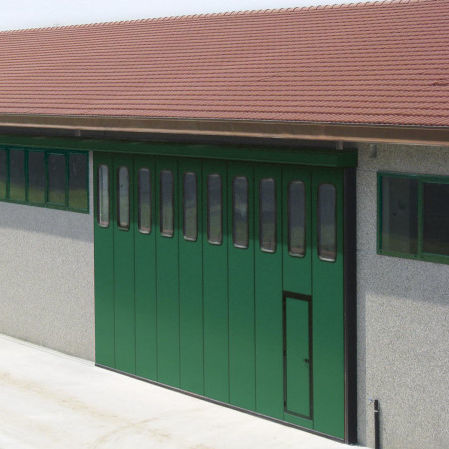

Roteo Gold with floor-mounted track. These doors are made up of 52 mm thick insulated leafs, produced with internal perimeter frame in galvanised steel, insulated with injected high-density self-extinguishing polyurethane foam (CFC-free) and clad in smooth pre-painted steel sheet (gauge 7/10), available in various colours. The panels are joined throughout the height by an "H" type joining profile in aluminium (black) and assembled by means of aluminium "C" profiles at the top and bottom (black). The upper derailing track is in pressed steel mounted on sliding bearings; the floor-mounted track is guaranteed by load-bearing wheels with double bearings in sealed chambers inserted on the lower section of the leaf. Lower closure with nylon brushes. The lower track (to be embedded in the floor by the client) can be selected from a range of models. The lateral seals are in black natural EPDM anti-ageing rubber and enable completely sealed closure. The door models can be supplied as manual, with retrofit operator provision, or power-operated.
