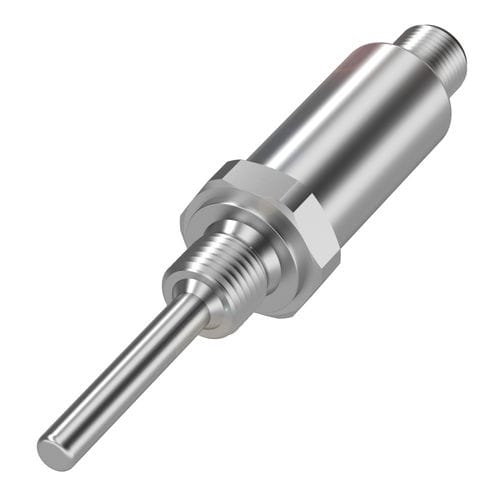

Pt1000 temperature sensor BFT0006threadedanalogM12 connector
Add to favorites
Compare this product
Characteristics
- Technology
- Pt1000
- Mounting
- threaded
- Output
- analog
- Electrical connection
- M12 connector
- Protection level
- IP67, IP69K, IP69
- Applications
- process
- Other characteristics
- stainless steel
- Temperature
Max.: 150 °C
(302 °F)Min.: -30 °C
(-22 °F)- Process pressure
270 bar
(3,916.02 psi)
Description
Measuring element
Pt1000
Operating voltage Ub
10...30 VDC
Analog output
Analog, current 4…20 mA
Connection
Connector, M12x1-Male, 4-pin
Installation length from contact surface
50 mm
Process connection
G 1/4" outer
Process connection material
1.4571 stainless steel
Housing material
1.4571 stainless steel
Ambient temperature
-40...85 °C
IP rating
IP67, IP69, IP69K
Approval/Conformity
CE
cULus
WEEE
