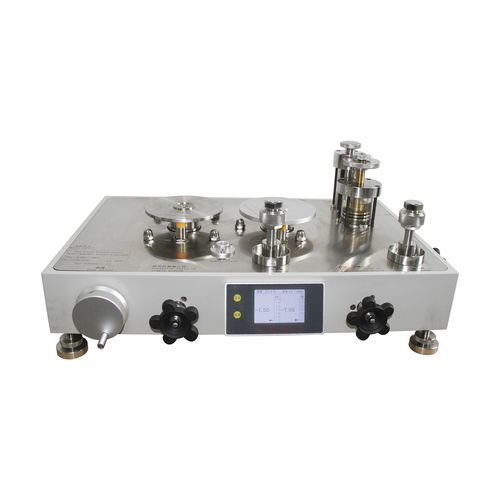

The model BL505 dual piston pressure balance is based on the principle of static pressure, which achieves a force balance system through a master piston and a slave piston. When the system is under positive pressure, the balance of the two pistons is disrupted. The slave piston rises and the master piston falls. In order to restore the original balance of the system, several
weights must be added to the slave piston to restore balance. At this time, the weight of the added weights is the pressure value of the tested system. On the contrary, if negative pressure is introduced to the system, the salve piston falls and the master piston rises. At this time, several
weights must be added to the master piston to balance it, and the weight of the added weights is the vacuum value of the tested system.
FEATURES
• 0.01%, 0.02%, 0.05% accuracy class
• Motor drives the weight rotating.
• Front LED shows piston position, real temperature and humidity.
• The oil pressure regulator and oil gas isolator are equipped with needle valves.
• ISO17025 accredited calibration
APPLICATION
• Calibrate spring tube pressure gauges and precision spring tube vacuum gauges.
• Test mercury pressure gauges and non-corrosive industrial pressure gauges.
