Monitoring software AI Data Teams

automationdata acquisition and analysisdata acquisition

Overview
Banalytics is an edge data orchestration layer designed to collect, synchronize, filter, monitor, and publish real-world multimodal data from field hardware into training pipelines. It is targeted at ML teams and AI companies whose main challenge is operationalizing reliable, structured data collection from deployed physical environments rather than model architecture or training tooling.

The Bottleneck

• Manual field collection does not scale: sending engineers to collect drives and label sessions is expensive and inconsistent.
• No synchronization between modalities: video, sensor telemetry, and event data often arrive with mismatched timestamps and no common context.
• Blind collection wastes storage and compute: always-on recording captures large volumes of irrelevant data without event-based filtering at the edge.
• No visibility into collection health: device failures, sensor drift, or full storage are often only discovered when data is needed.

Target Architecture
Banalytics sits between field hardware and training stacks to handle orchestration, synchronization, event filtering, and health monitoring so teams do not need to build an edge platform from scratch. Core architectural layers described include:

• Field Devices: cameras, sensors, DAQ, robots, industrial equipment.
• Local Acquisition Layer: device connectivity, buffering, synchronization, local storage; capture close to the source with low latency and reduced cloud-dependency in the hot path.
• Banalytics Orchestration Layer: dashboards, health monitoring, event logic, remote visibility, and publishing.
• Training Stack: upstream consumer systems (PyTorch, TensorFlow, MLOps, data lake, experiment tracking) remain independent and consume structured outputs, samples, and metadata.

Pipeline Steps

• 01 Capture close to the source — Real-world data is captured at the edge where bandwidth and latency constraints are favorable; no dependency on cloud upload in the collection hot path.
• 02 Synchronize across modalities — Video, telemetry, waveform, and event context are timestamped and aligned at the source rather than reconstructed later.
• 03 Filter by events, not time — Define triggers (motion, anomalies, thresholds) so only meaningful data is captured, reducing noise and downstream cost.
• 04 Monitor collection health — Remote dashboards surface device status, storage levels, and data quality signals, enabling rapid detection of node problems.
• 05 Publish structured outputs upstream — Metadata, event-tagged samples, and synchronized packages are exposed to training pipelines through defined interfaces instead of raw dumps.

Core Value
Real-world collection becomes operational and repeatable across different deployment environments. Banalytics provides an orchestration layer that treats a new collection site as configuration rather than a bespoke engineering project. Key promises include repeatable deployments, vendor-independence, event-triggered capture, buffered local storage for low/no-connectivity environments, and remote collection monitoring.

What Banalytics adds to your data operation

• Repeatable deployment across field environments.
• Vendor-independent connectivity to existing hardware.
• Event-triggered capture to collect relevant samples only.
• Buffered local storage to tolerate intermittent connectivity.
• Remote dashboards for device health and data flow visibility.

Must-Have Features / Built for AI data operations

• Multi-Device Integration: supports cameras, sensors, DAQ systems, robots, industrial equipment and common protocols (example protocols cited: IP, ONVIF, RTSP, MQTT, Modbus).
• Multimodal Synchronization: video + sensor + telemetry + event context timestamped and synchronized at the source for training-ready output.
• Event-Based Capture: trigger capture by motion, anomalies, signal thresholds, or external events to collect meaningful instead of continuous noise.
• Edge-First Storage: raw high-bandwidth data remains local; only selected samples, structured metadata, and packages are published upstream.

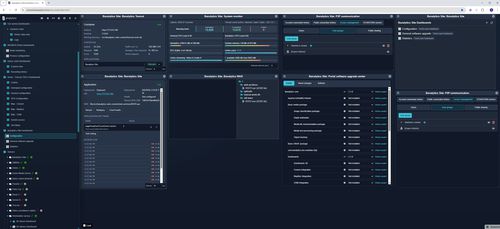

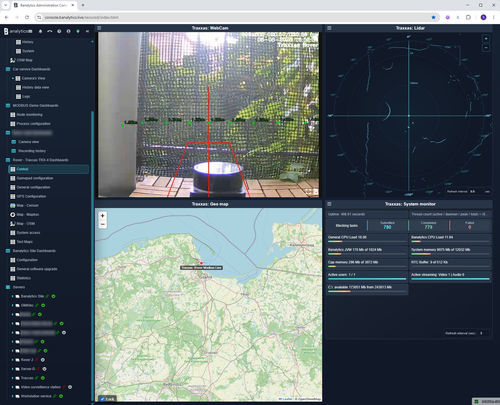

• Remote Collection Monitoring: browser dashboards for deployed nodes showing device health, storage levels, and data flow status.
• Pipeline Integration: publish structured event packages and expose data to training stacks, data lakes, or ML tooling via APIs while keeping model infrastructure independent.

What Banalytics does not replace

• Annotation & labeling platforms: Banalytics produces event-tagged, synchronized packages ready for annotation but is not a labeling tool itself.
• Active learning loops and advanced sampling logic: training-set optimization and confidence-based active learning are outside the base scope unless included in a specific pilot.
• Deep, project-specific integrations with cloud ML stacks: deep integration with particular MLOps platforms or experiment trackers may require project work beyond standard APIs.
• Specialized high-speed devices requiring vendor SDKs: some advanced devices need vendor SDK integration scoped per pilot.

Caractéristiques / spécifications techniques

• Edge-first architecture: local acquisition, buffering, synchronization, and storage.
• Multimodal support: video clips, telemetry, waveform data, and event context in synchronized packages.
• Event-triggered capture logic: motion zones, anomalies, signal thresholds, external triggers.
• Health monitoring and dashboards: remote visibility into device status, storage, and data quality signals.
• Structured output format: event packages containing event_id, trigger, timestamp_utc, modalities (video/telemetry/waveform), device_health, label_ready fields.
• Publish interfaces: APIs to publish metadata, event-tagged samples, and synchronized packages upstream to training infrastructure.
• Vendor-independent connectivity: designed to adapt to existing field hardware and common device protocols.
