Tubular reactor SONOBLOC® series

ultrasonic

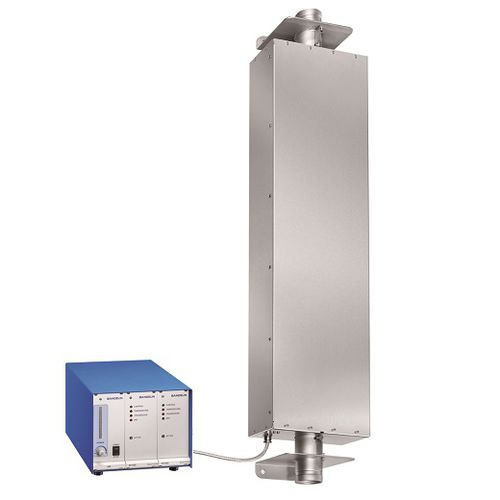

1 kW tube reactor SONOBLOC® 2 inch / DN 50 The BANDELIN - tube reactor enables the ultrasonic flow treatment of high flow rates in process engineering and is also used for wire cleaning. The transducers are mounted externally at the reactor tube, so no internals restrict the flow inside the reactor tube. The tubular reactor is therefore insensitive to blockages in case of sonicating solids-containing substrates . The main applications of the BANDELIN tube reactors are: ● Ultrasonic intensive treatment of flexible fibrous products and wire or band-shaped endless profiles ● Support of industrial and biotechnological processes in cleaning, disintegrating, degassing and disagglomerating ● Efficient cleaning by removing grease, oil, emulsions and/or crack residues with single- and multiple-wire cleaning ● CO2 degassing of aqueous reactants ● Support of disinfection (bacterial elimination) in water and wastewater treatment ● Acceleration of disintegration and/or decomposition of organic contaminant material in treatment of sludge ● Desintegration of Biogas Substrate ● Support of disinfection of bacteria- and parasite-burdened fishbreeding circulating waters ● Dispersing of solid particles in liquids (medicine production) 2 kW tube reactor SONOBLOC® 3 inch / DN 80 For the sonication of high volume flows or substrates with high solid content the 3 -inch tubular reactor was developed. Due to the unique design the use of internals or a change in the cross section of the reactor can be dispensed with, whereby the tube reactor is insensitive to clogging. The BANDELIN - tube reactor is mainly used in biogas plants to increase the biogas yield by desintegrating biogas substrate.
