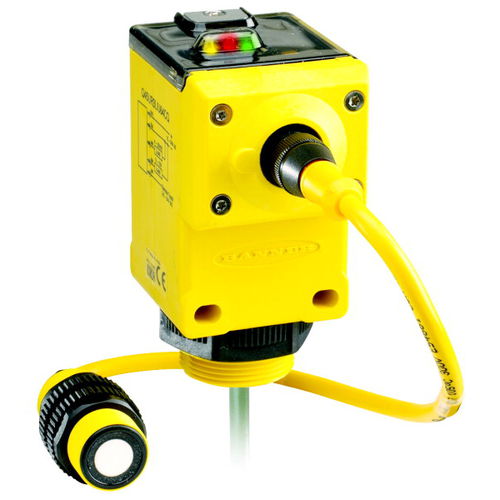

Ultrasonic distance sensor Q45UR SERIES
analogdigitalIP67

ultrasonic distance sensor
ultrasonic distance sensor
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Output
analog, digital
Protection level
IP67, IP65
Other characteristics
programmable
Range

Min.: 50 mm
(2 in)

Max.: 250 mm
(10 in)

Description

The Q45UR Ultrasonic Sensor offers users the choice of three remote sensing heads for use in confined or difficult environments. - Requires remote transducers for sensing in areas otherwise inaccessible to ultrasonic sensors - Provides sensing range of 50 to 250 mm - Offers choice of analog or discrete output - Offers discrete output for ON/OFF presence detection - Available with analog output for applications requiring a continuous current or voltage output - Simplifies setup with push-button TEACH programming of near/far limits of the sensing window - Features programmable response speeds - Includes built-in temperature compensation on remote sensing head and an operating temperature range of -25° to 70° C - Provides digital filtering for exceptional electrical and noise immunity
