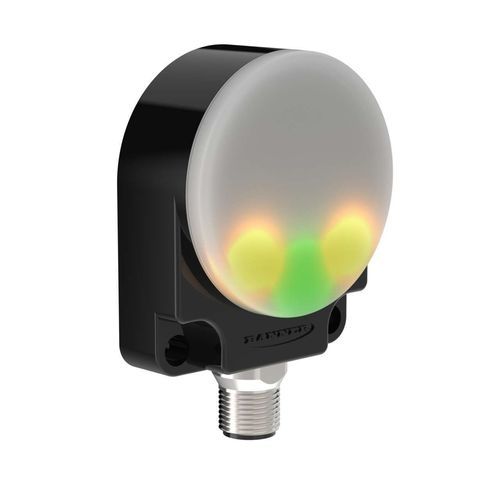

The K50R series of radar sensors provides a durable, cost-effective solution for short-range detection applications, particularly in challenging environments.
Operates at a frequency of 60 GHz, for detecting a greater diversity of materials than 24 GHz radar sensors, yet providing better ambient weather resistance than 122 GHz sensors
3.0-meter range with a short dead zone of 0.1 meters
Performance modes to customize the sensor to the application
Wide-angle (80° × 60°) beam pattern
Standard version includes three LEDs and dual discrete outputs for presence/absence detection
Pro version includes eight programmable RGB LEDs to customize the indication for the application
PC GUI or remote teach configuration options
Flush-mount design for easy installation on flat surfaces
Ideal sensor for vehicle-detection applications
