CO2 air quality monitor AEROTEST SIMULTAN

COportablebreathing air

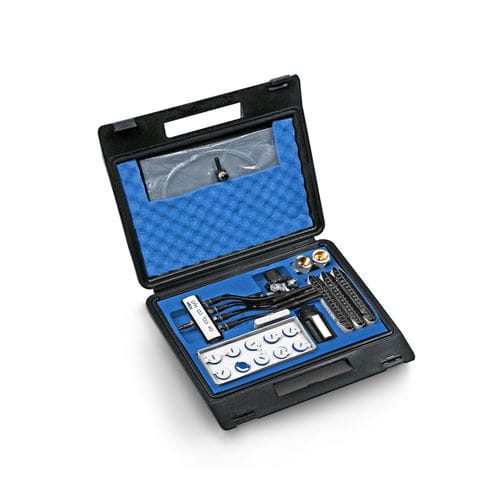

Mobile test system for breathing air and Nitrox applications up to 300 bar The portable AEROTEST SIMULTAN test system enables reliable analysis of breathing air and Nitrox in accordance with DIN EN 12021, using detector tubes and an impactor. Measures CO, CO₂, water vapor, and residual oil Compact design for mobile use The portable breathing air tester AEROTEST SIMULTAN HP enables reliable purity measurement of compressed air. Using detector tubes, CO, CO₂, and water vapor are measured simultaneously; an impactor detects mineral and synthetic oils. Incorrect results due to user error are virtually eliminated, and no calibration is required. A pressure reducer with special nozzles ensures constant flow rate and consistent measurement accuracy. To detect oil content, compressed air flows through 20 nozzles directly onto a glass impaction plate in the impactor. Due to their mass inertia, oil aerosols are deposited, filling the recesses of the glass surface and reducing light scattering – making even minimal oil quantities visible. The specific nozzle arrangement enables quantitative evaluation, regardless of the oil type. Vaporized oils are not detected under typical operating temperatures. To conduct the measurement, the AEROTEST SIMULTAN HP is connected to a compressor, cylinder, or pipeline. After at least three minutes of flushing (without the impactor), the measurement is performed at 4 l/min. The impactor is inserted first, followed by the detector tube. The measurement takes five minutes. The protective foil is then removed and the result is read.
