Characteristics

Technology
piston
Type
air
Power source
electric
Portability
stationary
Voltage
400 V
Other characteristics
compact, low-noise, high-pressure, three-stage, vertical
Pressure

225 bar, 350 bar, 420 bar
(3,263.35 psi, 5,076.32 psi, 6,091.58 psi)

Flow

250 l/min, 300 l/min
(66.04 us gal/min, 79.25 us gal/min)

Power

5.5 kW, 7.5 kW
(7.48 hp, 10.2 hp)

Length

104 cm
(40.94 in)

Width

755 mm
(29.72 in)

Height

132 cm
(51.97 in)

Weight

250 kg, 260 kg, 270 kg
(551.2 lb, 573.2 lb, 595.2 lb)

Description

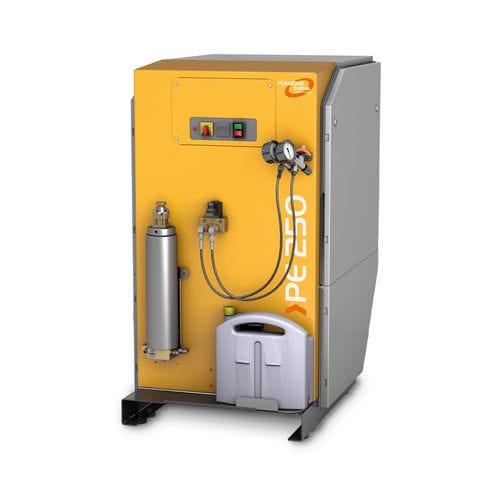

Stationary 250–300 l/min unit for breathing air applications up to 350 bar The PE-MVE combines proven BAUER quality with space-saving design. Ideal for stationary installations at fire departments, dive centers, and rescue services. Certified Breathing Air Quality The BAUER PE-MVE (350 bar) delivers independently tested and accredited breathing air quality that not only meets but exceeds international standards such as EN 12021:2014, CGA/ANSI Grade E, and other relevant norms – ensuring maximum safety for every application. Outstanding Price-Performance Ratio The unit combines premium quality with an outstanding price-performance ratio, delivering strong performance, high reliability, and durable technology for economical, safe, and long-term efficient operation. Super-Silent Enclosure The Super-Silent enclosure effectively reduces sound pressure levels, enabling particularly quiet, high-performance operation in noise-sensitive working environments and indoor areas. It is available as standard or as a retrofit option and features ergonomically optimized operation and service access without any loss of performance. Most Comprehensive Options and Accessories Program BAUER offers the industry’s most comprehensive portfolio of options and accessories, enabling precise, application-specific configuration of complete breathing air systems. Solutions cover the entire process chain, from compression and air and gas treatment to quality monitoring and legally compliant cloud documentation. All components are fully integrated, system-compatible, and available from a single source, without the need for custom-built solutions.
