Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Other characteristics
high-pressure, high-performance, four-stage
Pressure

Min.: 225 bar
(3,263.35 psi)

Max.: 330 bar
(4,786.25 psi)

Flow

Min.: 250 l/min
(66.04 us gal/min)

Max.: 700 l/min
(184.92 us gal/min)

Power

7.5 kW, 11 kW, 15 kW
(10.2 hp, 14.96 hp, 20.39 hp)

Length

114 cm
(44.88 in)

Width

83 cm
(32.68 in)

Height

152 cm
(59.84 in)

Weight

299 kg, 378 kg, 403 kg
(659.2 lb, 833.3 lb, 888.5 lb)

Description

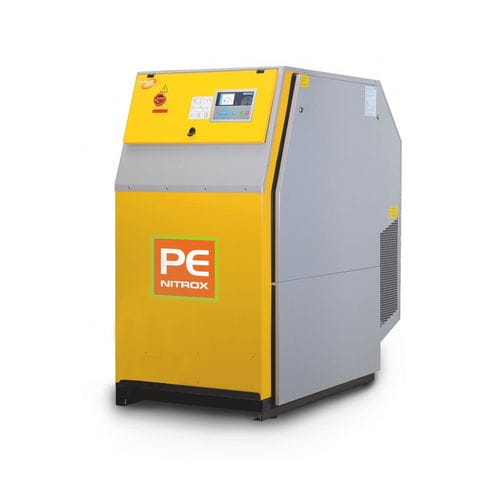

Stationary 320–700 l/min unit for Nitrox applications up to 330 bar The PE-VE-OX enables safe and reliable compression of Nitrox up to 40%. Nitrox Capable up to 300 bar The unit is designed for Nitrox up to 300 bar and features a TÜV-certified OX configuration, ensuring maximum safety as well as high-performance, nitrox-optimized technology for professional applications. B-CLOUD with B-CONTROL MICRO In combination with the multilingual B-CONTROL MICRO HMI, B-CLOUD enables market-leading online monitoring with real-time transparency of system status, operating parameters, and maintenance data, ensuring maximum control and operational safety. B-DETECTION PLUS i (optional) B-DETECTION PLUS i continuously monitors and documents all gases relevant under DIN EN 12021:2014 and automatically shuts down the system in case of deviations. Together with legally-compliant cloud documentation, B-DETECTION PLUS i provides maximum safety and full regulatory traceability. Super-Silent Enclosure The Super-Silent enclosure effectively reduces sound pressure levels, enabling particularly quiet, high-performance operation in noise-sensitive working environments and indoor areas. It is available as standard or as a retrofit option and features ergonomically optimized operation and service access without any loss of performance. Most Comprehensive Options and Accessories Program BAUER offers the industry’s most comprehensive portfolio of options and accessories, enabling precise, application-specific configuration of complete breathing air systems.
