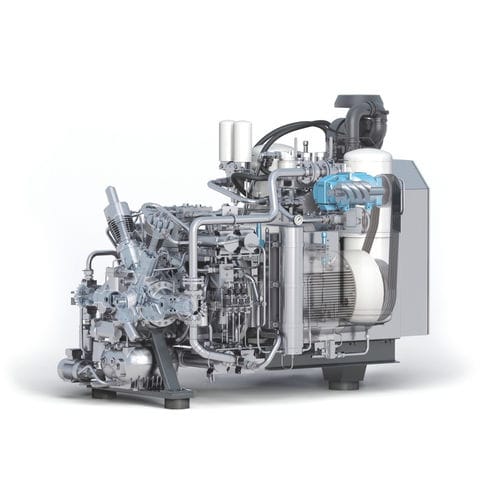

Water-cooled compressor GIB26-SP series

screwairelectrically-powered

Water-cooled high-pressure compressors of the GIB-SP series in the pressure range 50–520 bar – ideal for industrial heavy-duty applications with high delivery capacity and compact design. The GIB-SP series from BAUER KOMPRESSOREN combines a screw compressor and high-pressure booster in a compact system for maximum free air delivery and extreme loads in continuous operation. Thanks to multi-stage compression and targeted water cooling, compression and operating temperatures remain low, extending the service life of the system and minimising maintenance requirements. The water-cooled design enables reliable operation even under the most difficult environmental conditions, while the standard equipment with soft start and B-CONTROL III ensures maximum efficiency and ease of use. GIB-SP compressors are particularly suitable for heavy-duty industrial applications. The B-CONTROL III is the premium control system for complex applications. Its 7-inch touchscreen display provides a user-friendly visualization of all operating data. Features such as a data logger, USB interface, Remote HMI, and protocols including OPC UA, Modbus, and CAN bus are integrated. The control system supports up to four compressors in a network and can be expanded flexibly. The BAUER GIB SP series is a compact, integrated unit combining a screw compressor and a high-pressure booster. Both modules are driven by a single motor. Unlike conventional systems with separate components, this integrated solution requires only one control system and one motor. With three or five compressor stages and efficient water cooling, it ensures low compression and operating temperatures – all within a minimal footprint.
