Dedicated B-CONTROL control: Independent of the compressor
Continuous drying: With two dryer chamber dryer modes working in parallel (dryer mode and regeneration mode)
Optimum FAD for your application: For air, gases and high operating hour counts

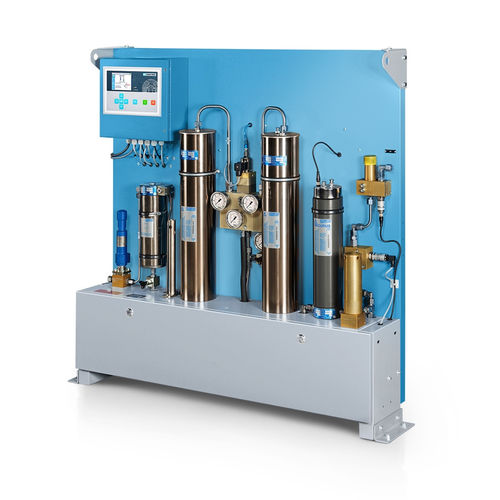

The regeneration dryers in the SECCANT series by BAUER KOMPRESSOREN for the pressure range from 90 to 350/420 bar have been designed to dry air and gases in applications in which operating hour counts, free air delivery rates and ambient temperatures are high.
These units, which are delivered ready for operation, are equipped with electronic control, smooth switch-over between regeneration and work cycles as standard, as well as featuring upstream separation and a particle filter.
The impressive unit concept also makes for easy integration into the overall system.
Activated carbon filters for oil removal and CO conversion (for the treatment of breathing air and air for use in medical applications, for example) can be added to meet your specific individual industrial requirements and production needs.
The use of a dedicated control system as standard makes the SECCANT series independent of the compressor control system. All that is required is a start/stop signal from the compressor control.
The B-CONTROL dryer control used also supports the transfer of additional data to the compressor control or other monitoring equipment via bus cable.
Continuous drying
The two dryer chambers work in parallel: one dryer chamber is operated in drying mode, the second is operated in regeneration mode. Automatic switch-over between the modes is controlled via the control. This ensures a constant supply of treated medium.
