Deep-stabilization drilling rig BG 23 H BT 75

stabilizationgeotechnicalpiling

Product overview

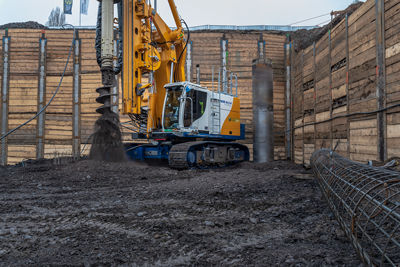

The multifunctional BG 23 H mounted on the BT 75 base carrier is a rotary drilling rig with H-kinematics designed for foundation work. It is suitable for Kelly drilling, soil-mixing techniques and ground improvement measures, and can be operated on construction sites requiring deep foundation installations.

Key performance data

• Max. torque: 235 kN·m
• Max. drilling depth (Kelly): 53.2 m
• Max. drilling diameter Kelly (uncased): 1,500 mm
• Max. engine performance: 310 kW

Product brochure
BG_23_H_BT_75_Rotary_Drilling_Rig_EN_905_784_2.pdf — PDF, 5.34 MB

Technical specifications

• Model: BG 23 H BT 75
• Brand: BAUER Maschinen
• Product type / kinematics: Rotary drilling rig with H-kinematics
• Max. torque: 235 kN·m
• Max. drilling depth (Kelly): 53.2 m
• Max. drilling diameter Kelly (uncased): 1,500 mm
• Max. engine performance: 310 kW
• Intended applications: Kelly drilling, soil-mixing techniques, ground improvement measures
