Diaphragm wall grab DHG-LThydraulicrotary
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm wall
- Operation
- hydraulic
- Other characteristics
- rotary
- Carrier weight
Max.: 22,000 kg
(48,502 lb)Min.: 15,000 kg
(33,069 lb)
Description
Product description

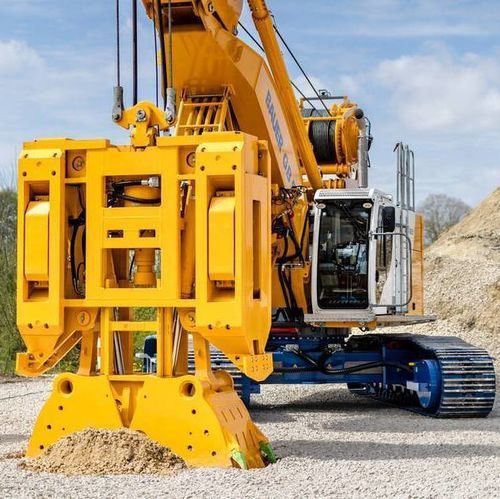

Our Low Headroom diaphragm walling grab DHG-LT is a hydraulic grab developed for use on projects with limited working heights. The short low-headroom design allows operation in confined rigs and can be combined with the GB 50 Low Headroom grab carrier. The DHG-LT can be equipped with an optional turning device and steering plates to provide functionality equivalent to the DHG-V.
Key features
Technical specifications
Our Low Headroom diaphragm walling grab DHG-LT is a hydraulic grab developed for use on projects with limited working heights. The short low-headroom design allows operation in confined rigs and can be combined with the GB 50 Low Headroom grab carrier. The DHG-LT can be equipped with an optional turning device and steering plates to provide functionality equivalent to the DHG-V.
Key features
- Low headroom design for use on projects with limited working heights
- Hydraulic operation
- Designed for combination with the GB 50 Low Headroom grab carrier
- Optional turning device (TD 4) and steering plates
- Functionality equivalent to the DHG-V
Technical specifications
- Trench length: 2,800 mm
- Trench width: 800 - 1,500 mm
- Cylinder force: 2 x 450 kN
- Weight: 15 - 22 t
- Steering plates: 4
- Turning device: TD 4 (optional)
