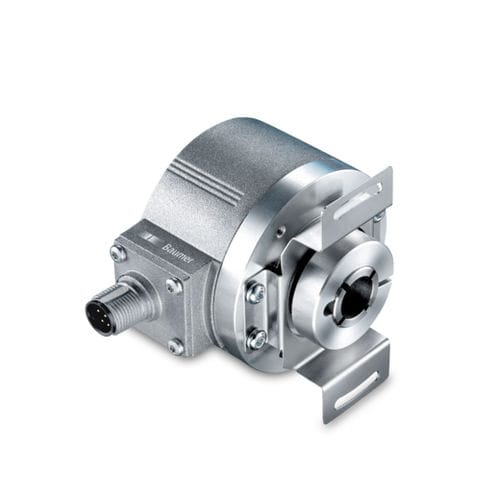

Incremental rotary encoder EIL580-B
absoluteopticalhollow-shaft

incremental rotary encoder
incremental rotary encoder
Add to favorites
Compare this product


Characteristics

Type
incremental, absolute
Technology
optical
Construction
hollow-shaft
Material
aluminum
Protection level
vibration-resistant, shock resistant, explosion-proof, robust, IP65, IP67
Applications
industrial
Other characteristics
high-accuracy, modular
Incremental encoder résolution (pulses per revolution

Max.: 5,000 unit

Min.: 100 unit

Flange size

58 mm
(2 in)

Housing diameter

58 mm
(2.28 in)

Shaft diameter

Max.: 12.7 mm
(0.5 in)

Min.: 8 mm
(0.31 in)

Description

Flexible, robust, precise Modular building block system, for every encoder application the perfect match Absolute reliability and maximum durability prevent machine failure and downtime Outstanding precision for high control quality and maximum application productivity Attractive price-performance ratio, short lead times and perfectly harmonized, tried-and-tested accessories 58 mm – blind hollow shaft EIL580-B Blind hollow shaft 8 … 15 mm 100 … 5000 ppr 1 … 65 536 ppr (programable version) 58 mm – clamping flange EIL580-SC Solid shaft 10 mm with clamping flange 100 ... 5000 ppr 1 … 65 536 ppr (programable version) 58 mm – synchro flange EIL580-SY Soild shaft 6 mm with synchro flange 100 … 5000 ppr 1 … 65 536 ppr (programable version) 58 mm – through-hollow shaft EIL580-T Through-hollow shaft 8 ... 15 mm 100 ... 5000 ppr 1 … 65 536 ppr (programable version) 58 mm – square flange EIL580-SQ Solid shaft with square flange 100 ... 5000 ppr 1 … 65 536 ppr (programable version)
