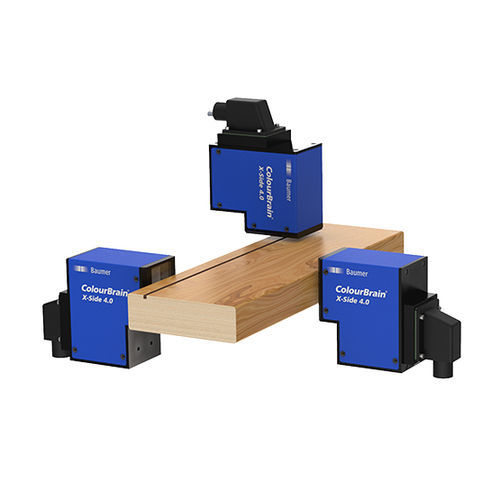

3D inspection system ColourBrain®X-Side 4.0

universalautomatedfor defect detection

The inspection system ColourBrain® X-Side 4.0 is a universal application for narrow surfaces. Typical production defects such as bumps or dents are precisely detected and the drilling pattern is monitored for uniformity on the coated and painted narrow sides of furniture components. In combination with the proven Baumer surface and edge systems, a 360° inspection of furniture parts is now possible. Due to the compact and modular design, the system is constructed for the simultaneous inspection of up to 6 narrow surfaces. It can be used in a variety of areas, such as the inspection of foil joints and grooves in the edge areas of furniture parts. ColourBrain® X-Side 4.0 works independently of decor and structure. With its slim design the system can be quickly integrated into your existing production environment. Your benefits at a glance: • Versatile application for the inspection of narrow surfaces on furniture parts, • Detects typical production defects and verifies the presence of drill holes. • Objective detection of small defects, independent of decor and structure. • Same user interface and data interfaces for combined Baumer systems. • Classification of defects and allocation in the production process. • Improve your product quality through immediate process optimization. • The system is suitable for both series and batch-1 operation.
