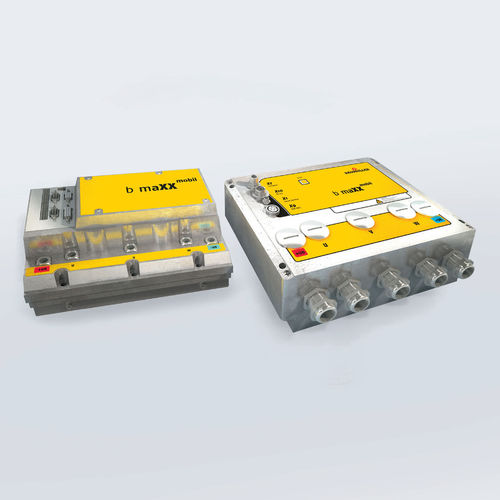

Digital DC drive b maXX mobil seriesIP20compactfour-quadrant
Add to favorites
Compare this product
Characteristics
- Type
- digital
- Protection class
- IP20
- Other characteristics
- compact, four-quadrant, high-performance, CAN BUS, for mobile applications
- Intensity
Max.: 450 A
Min.: 40 A
Description
Drive system for mobile applications
Designed for four-quadrant operation, the b maXX mobil can brake in both directions and recover energy in addition to generating drive. For mobile use, the controller is vibration resistant and can be used in temperatures between -25 ° and + 65 ° Celsius. Communication takes place via CAN bus and digital inputs/outputs are additionally available.
The controller is used in battery-powered vehicles such as electric boats and forklift trucks as well as in many battery-powered industrial applications.
For example, the B maXX mobile is suitable for use as a wheel-hub drive with DSM disc motors, which excel thanks to their compact design, highly dynamic running characteristics and low maintenance requirements. Baumüller thus provides a space-saving and high-performance solution.
