high-speed servomotor / AC / synchronous / 400 V
DSP1 series

Add to MyDirectIndustry favorites
Compare this product

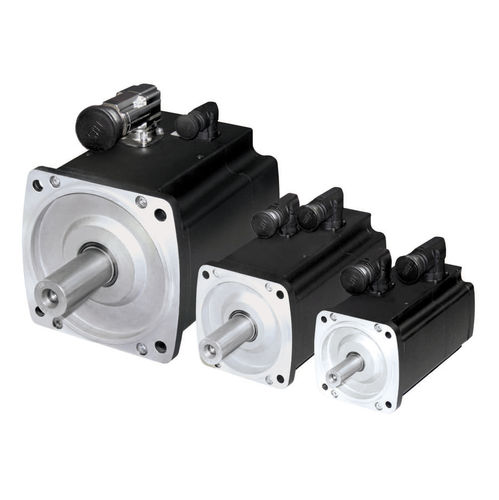

high-speed servomotor / AC / synchronous / 400 V high-speed servomotor / AC / synchronous / 400 V - DSP1 series
{{requestButtons}}

Characteristics

  • AC/DC:

    AC

  • Type:

    synchronous

  • Voltage :

    400 V

  • Other characteristics:

    with brake, IP65, permanent magnet, compact, high-speed

  • Torque:

    Max.: 155 Nm (114.3221 ft.lb)

    Min.: 2.2 Nm (1.6226 ft.lb)

  • Power:

    Max.: 32 kW (43.508 hp)

    Min.: 1.2 kW (1.632 hp)

  • Rotational speed:

    Max.: 6,000 rpm (37,699.11 rad.min-1)

    Min.: 1,000 rpm (6,283.19 rad.min-1)

Description

For applications with high speed requirements, the DSP servo motors complement the existing DSC range with nominal speeds of up to 6000 rpm. The outfit is identical to that of the compact DSC servo motors and the DSD range of dynamic servo motors. Thanks to their good acceleration and overload capabilities, as well as increased speed and power range, DSP motors are particularly suitable for applications in material handling axes, processing machines and servo pump drives.
Properties

Compact design with nominal speeds of up to 6000 rpm
Protection class up to IP65 irrespective of the cooling method
Main connection via rotatable plug or terminal box
Excellent smooth running characteristics
Smooth housing surface — not susceptible to dirt
Slim, integrated housing design
Permanent magnet synchronous servo motors
High overload capacity
Virtually detent-free
Encoder: resolver, SinCos (optional)
All models are optionally available with a brake
