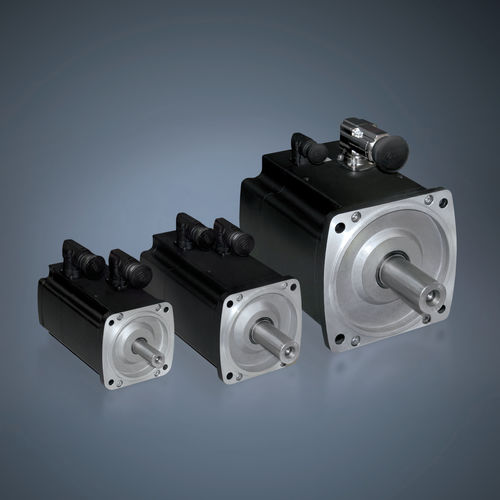

High-precision servomotor DSH series

three-phasepermanent magnetwith brake

Almost zero cogging The DSH motors score with a not noticeable notch position and thereby reaches an extremely high control quality especially associated to the Baumüller drive engineering. The DSH is the best solution for a variety of applications having a speed up to 5000 min-1 and an extremely low notch position: • Robotics • Label printing machines • And many others Properties • Extremely low notch position • Low torque ripple • Compact size having a high power density • Degree of protection to IP65 • Main connection via a rotatable connector or a terminal housing • Excellent concentricity properties • Smooth housing surface – not susceptible to dirt • Uniform, slim-line type housing design • Permanent magnet synchronous servo motors • High overload capability • Encoder: Resolver, SinCos (optional) • All types can optionally be obtained with a brake
