Pharmaceutical product production line VarioSys®

modularwith dryingflexible

Overview

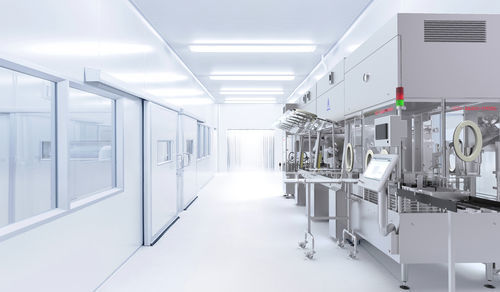

The VarioSys® modular production system for biotechnological and pharmaceutical products combines an isolator system from SKAN with customised machine modules from Bausch+Ströbel. The architecture allows rapid reconfiguration by exchanging modules and supports both clinical-sample production and batch manufacturing within a single installation. The line can be extended with compatible freeze-drying equipment from GEA to create integrated processing chains.

Fields of application

• Commercial manufacturing
• Clinical filling
• Filling personalized medicines
• Flexible contract manufacturing
• Small-batch manufacturing
• Product development
• Start-up / Scale-up
• Process development

Evonik whitepaper - production criteria (summary)

• Production of complex parenterals
• Maintained flexibility during production
• Support for different in-line dosing processes for liquid and powdered products
• Concurrent reduction of cost and time

How it works / Key features
Modular machine concept: an isolator by SKAN is combined with plug-in machine modules from Bausch+Ströbel. Modules are mounted using a lock-and-key principle and connected via plug-in interfaces to enable fast exchange and reconfiguration. The system supports scalable production modes, allowing clinical runs and full batch production in the same installation. Expansion with compatible freeze-drying equipment from GEA enables extended processing sequences.

Technical specifications

• Performance: 4,300 objects per hour
• Tub height: max. 155 mm
• Syringe volume: 0.5 - 10 ml
• Cartridge volume: 1.8 - 3 ml
• Vial diameter (Ø): 14.25 - 52 mm
• Vial height: 30 - 105 mm
