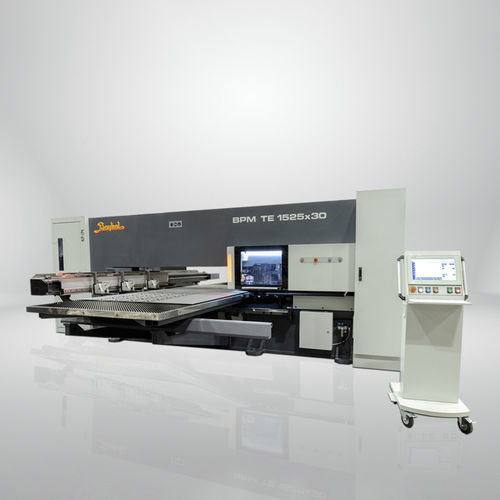

CNC punching machine BPM TE

electricfor metal sheetsfree-standing

Smooth processes and high machine availability • 12 Stations • 3 Indexable D Stations • Servo Motors on all Axes • 900 strokes / min. • O Type Frame • 2540 x 1540 mm Working range X x Y (Without Repositioning) : 2540 x 1540 mm Maximum Punching Force : 30 Tons Frame Design : "O" Frame Number of Stations : 12 Stations Number of Indexable Stations : 3 Stations CNC Control Unit (Touch Screen) : Bosch MTX CNC / 15,6’’ TFT-Windows 7 Nesting Software : Lantek Sharp Punch Servo Motors/Drivers Rexroth Positioning Accuracy : ± 0.1 mm Repeatability : ± 0.04 mm Maximum Tool Changing Time (Multitool) : 1 sec. Maximum Tool Changing Time (Turret) : 3 sec. Axes X, Y, Z, C1, C2, T Z Axis Stroke : 30 mm Speed X Axis : 100 m / min. Speed Y Axis : 80 m / min. Speed Combined (X+Y) : 128 m / min. Speed C1/ C2 : 100 rpm Speed T : 30 rpm Maximum Punching Rate (1 mm Nibbling) : 900 strokes / min. Maximum Punching Rate (25 mm Nibbling) : 360 strokes / min. Maximum Workpiece Weight : 170 kg Maximum Sheet Thickness : 6.4 mm Max. Punching Diameter for 6.4 mm Thickness : 25 mm Number of Sheet Clamps : 3
